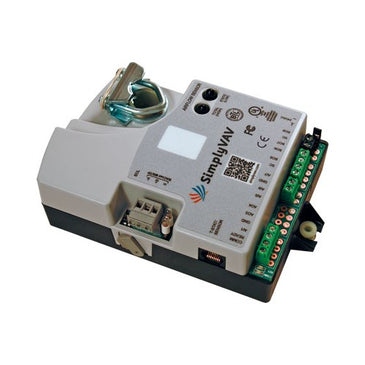

BAC-8205 | BACnet ASC: SimplyVAV, Fan and Reheat, Position, 40 in-lbs, 60 sec. | KMC
BACnet ASC: SimplyVAV, Fan and Reheat, Position, 40 in-lbs, 60 sec.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BAC-8205
Overview Details for BAC-8205
BACnet ASC: SimplyVAV, Fan and Reheat, Position, 40 in-lbs, 60 sec.
The SimplyVAV series of controllers are an easy and unique approach to operating a wide variety of VAV terminal units. The integrated actuators, internal airflow sensors, and wide variety of application programs make these BACnet Application Specific controllers ideal for either new or retrofit installations.
Model BAC-8205 is supplied with inputs, outputs, and sequences of operation for the following functions.
- Single duct heating and cooling VAV
- Modulating, floating, time proportional, and staged reheat
- Series and parallel fan control
- Automatic heating/cooling changeover
- Discharge air temperature limiting
- Occupancy setback—requires STE-8201
- Actuator position feedback for true damper positioning
- System diagnostic indicators
- Airflow balancing
- A 60-second actuator for control of RTU, HPU, or other unitary equipment in zoning applications. See the BAC-120063CW-ZEC FlexStat Zoning Equipment Controller.
Specifications
- Analog Inputs
2
- Analog Outputs
2
- Application
VAV
- BACnet Profile
Application Specific Controller
- Brand
KMC Controls
- Connectivity
MS/TP
- Feedback
Feedback Pot
- Mounting
V-Bolt/ Screws
- Timing (sec)
80
- Triac Outputs
5
- VAV Control
Pressure Independent
- VAV Fan
None, Parallel, Series
- VAV Reheat
Floating, Modulating, Staged, Time Proportioned
- VAV Type
Single Duct
