BAC-120063CW-ZEC | FlexStat: Zoning Equipment Controller, White | KMC

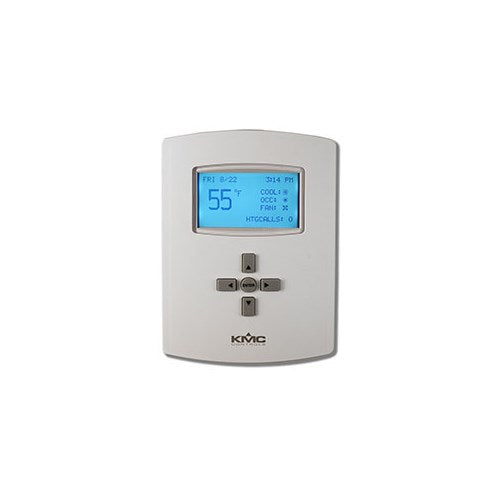

FlexStat: Zoning Equipment Controller, White

KMC | BAC-120063CW-ZEC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to BAC-120063CW-ZEC

Overview

Details for BAC-120063CW-ZEC

FlexStat: Zoning Equipment Controller, White

This model of the award-winning FlexStat series provides an easy, flexible solution for controlling unitary equipment and up to 16 associated Variable Air Volume (VAV) zones. Controlled equipment types include packaged Roof Top Units (RTUs), Heat Pump Units (HPUs), commercial split systems, and other similar unitary equipment. It is a powerful but simple solution for either retrofitting older VVT-type systems or installing new light-commercial zoning systems.

Using the integral BACnet MS/TP network, the BAC-120063CW-ZEC works in conjunction with up to 16 SimplyVAV BAC-8001/8005/8205 controller-actuators for pressure-independent VAV control in their respective zones.
The BAC-120063CW-ZEC can also provide a 0-10 VDC static pressure setpoint signal to an optional CSP-4702 pressure controller used with the system for pressure bypass control.

The BAC-120063CW-ZEC comes preconfigured for a 2H/2C RTU and zone device number range of 1000000 through 1000016. Configuration and scheduling are easily performed in the on-screen menu system.

With no software required, the BAC-120063CW-ZEC is quick to install and configure. Yet it also communicates with any Building Automation System using a BACnet network for monitoring and additional control options. For an Internet of Things solution, it quickly interfaces with KMC Commander.

Specifications

Application

HPU, RTU

BACnet Profile

Advanced Application Controller

Brand

KMC Controls

Color

White

Connectivity

MS/TP

Cooling Control

1 Stage, 2 Stage, Modulating

Fan Control

Constant

Heating Control

1 Stage, 2 Stage, Modulating

Relay Outputs

6

Sensor Type

Temperature

Universal Inputs

6

Valve Control

Modulating

Zoning Control

Yes
