VWN040LB+920HGA | BTRFLY 2-WAY 4" CV=841; 2-WAY 4" FLANGE ANSI125/150 CV=841; LAST POS; 24VAC+/-20%; 24VDC+/-10% | Johnson Controls

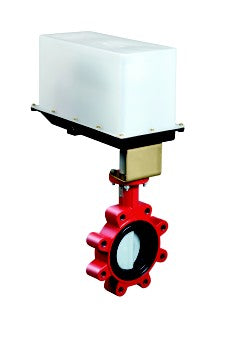

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VWN040LB+920HGA
Documents and manuals
Johnson Controls VWN040LB+920HGA Documents
Overview
Details for VWN040LB+920HGA
BTRFLY 2-WAY 4" CV=841; 2-WAY 4" FLANGE ANSI125/150 CV=841; LAST POS; 24VAC+/-20%; 24VDC+/-10%
- 4" 2-Way Butterfly Valve
- Ductile Iron Nylon 11 Coated Disc
- Chilled Water Hot Water Up to 50% Glycol / -40..250?F
- CV90=841 CV60=274
- 24 VAC/VDC
- Programmable
- Non-Spring Return - Normally Open - 0
- 180 in-lb Torque
- 4 ft. Halogen-Free Cable
- ANSI 125/150 Flange
- 90 sec Runtime
- Cast Iron Body
- Close-Off 50 psi
- NEMA 4 w/Weather Shield
Specifications
| Item Number | VWN040LB+920HGA |
| Brand | Johnson Controls |
| Category | Valves & Valve Actuators |
| Section | Butterfly 2 Way w/ Electric Actuator |
| Section | Valves & Actuators |
| SubCategory | Butterfly 2 Way w/ Electric Actuator |
