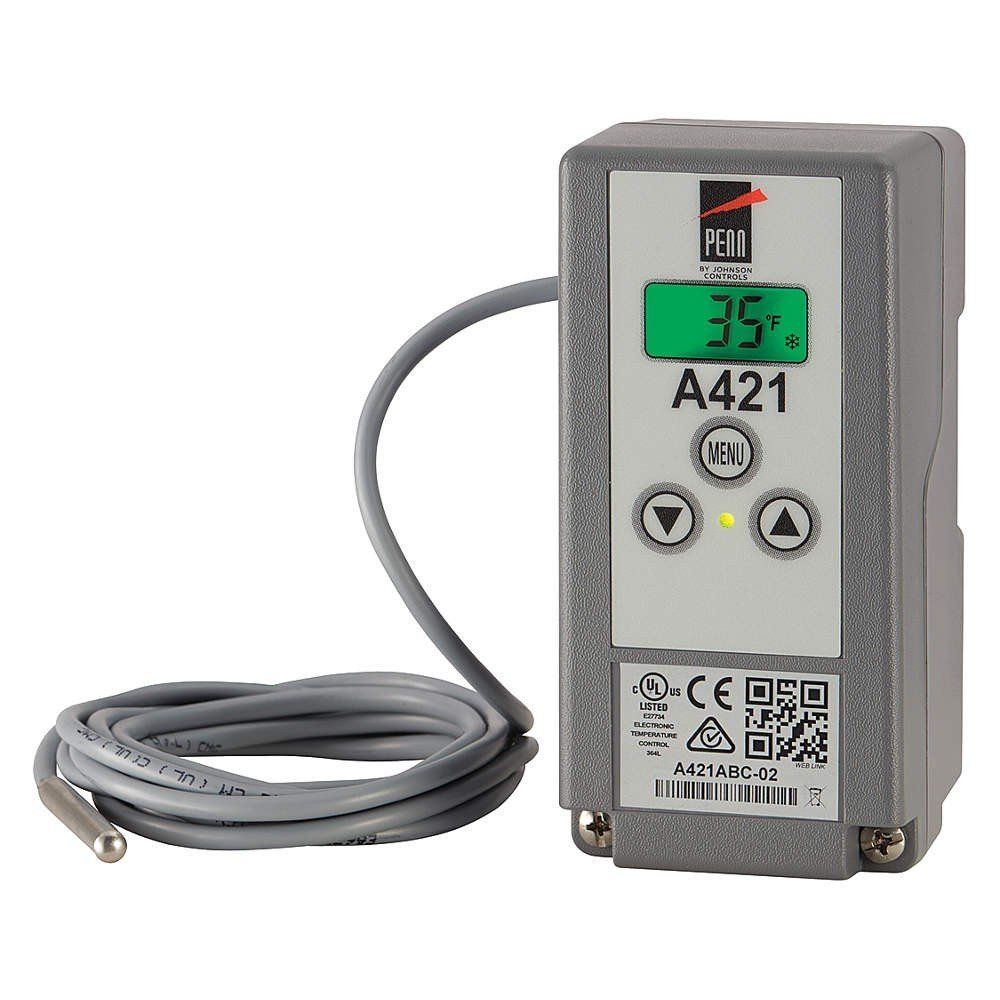

A421AEC-02C | Single Stage Temp Controller with Sensor, 120/240VAC, NEMA4X, 6' 7" lead, -40 to 212F, HTG/CLG | Johnson Controls

Single Stage Temp Controller with Sensor, 120/240VAC, NEMA4X, 6' 7" lead, -40 to 212F, HTG/CLG

Features and benefits

Control front panel LCD

Displays the temperature, parameters, and status. You can adjust the backlight intensity for ambient light conditions. Custom icons display the system and control status.

Basic and Advanced programming menu

Provides two levels of parameter adjustment and control. You can set up advanced features in one menu and easily adjust basic parameters in the other menu.

On/Off temperature adjustment

Select the temperature values at which the relay turns On and Off, which automatically defines the Heating or Cooling mode of operation.

Switch-activated temperature setback

Shift the On or Off temperature by an adjustable setback value. When a user-supplied switch closes the binary input control circuit, the control operates at the defined setback temperatures.

Adjustable anti-short cycle delay

Select the minimum time the output relay remains off before the next on cycle; avoiding short cycling, hard starts, and nuisance overload outages on compressors and other inductive applications.

Adjustable sensor offset

Adjust the displayed temperature to the actual sensed temperature.

Optional restricted adjustment mode

Restrict the On or Off adjustment to your defined temperature range.

Sensor failure mode

Select the relay On or Off state in the event of a sensor or sensor wire failure.

Backlight brightness level

Adjust the LCD backlight intensity.
