VS3-040-4-N2D-0 | VS3, 40HP, 480V, 52A, NEMA 12, DRIVE WITH DISCONNECT,SAB,BACnet IP&MS/TP | Johnson Controls

Brand: Johnson ControlsSKU: VS3-040-4-N2D-0

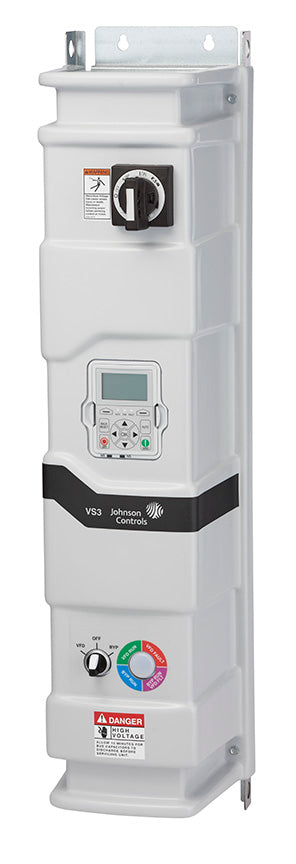

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VS3-040-4-N2D-0

Jump to: Overview & Specifications Reviews

Overview Details for VS3-040-4-N2D-0

VS3, 40HP, 480V, 52A, NEMA 12, DRIVE WITH DISCONNECT,SAB,BACnet IP&MS/TP

Description

Johnson Controls® Series III Variable Speed Drives (VSDs) control the speed of AC induction motors used in fan and pump applications. Key enhancements over the previous generation include:

Sensor Actuator Bus (SA) is built-in (no option card)
Standard conformal coating
Available 100K Short Circuit Current (SCCR) rating for disconnect and bypass models
Service Switch option on bypass models
Broken belt software feature
All iterations Plenum Rated
Damper End switch logic for Bypass
Impact resistant one piece plastic enclosure

Specifications

Item Number	VS3-040-4-N2D-0
Brand	Johnson Controls
Housing	NEMA 12
Type	VFD
VFD Horsepower	40
VFD Phase	Three Phase 380 ~ 480 VAC
