VFD68CLL-2C | 10 HP; 460 VAC; 50/60 HZ; 10 HP (7.5KW); 16 AMP; 460 VAC | Johnson Controls

10 HP; 460 VAC; 50/60 HZ; 10 HP (7.5KW); 16 AMP; 460 VAC

Description

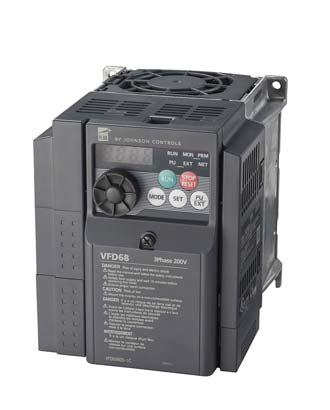

VFD68CLL-2C is a variable frequency drive from Johnson Control designed for three-phase control of the AC motor speed in heating, ventilation, air conditioning, and refrigeration (HVAC-R) systems. The drive supports devices that provide a steady signal from 0 to 10 DVC (or 4 to 20 mA), including the P499 EPT (electronic pressure transducer). In addition to HVAC-R systems, the VFD68 series can control a large number of fans, pumps, and blowers.

You can use various motors with the VFD68 unit. It can be connected with variable speed motors rated 40:1 for operation. However, you need to ensure that the motors have either an Inverter Rating (460 VAC), AC induction three-phase motors with UL or CSA certification (or equivalent), or insulation Class F (or better).

You can read the instructions manual for more data about the compatibility with motors and other technical specifications.

Applications

The VFD68CLL-2C provides a continuous response to condenser load conditions and supports different types of low-voltage controllers, pressure transducers, and temperature sensors. You can use this variable frequency drive for:

• ON/OFF controls
• Low ambient temperature conditions (down to -40 degrees Fahrenheit or Celcius).
• Maintaining stable evaporator temperature
• Maintaining and stabilizing condenser head pressure
• Reduce short-cycling
• Optimizing energy consumption rate to reduce your expenses
• Optimizing compressor operations to extend its service life
• Prolonging the service life of HVAC-R equipment
• Reducing the costs needed for replacements, repairs, and maintenance

You can integrate the VFD68 with an RTU-compliant ModBus device to integrate it into the ModBus network. Thanks to a straightforward interface, you can easily configure the drive for different applications.

Features

• Supports various input signals. The VFD68 can be used with different input signals from transducers, controllers, and sensors.
• Easy to install. The device has a compact design which makes it easy to install and link to HVAC-R systems.
• Intuitive interface. The straightforward UI with an application-styled setup allows you to adjust the parameters of your VFD for any custom application.
• Works with many motors. You can connect the devices to three-phase motors ranging up to 10hp.
• Replaceable parts. You can contact Johnson Controls for a new VFD or replacement parts in case of failure or poor performance.
