VH1845CL+9T4AGA | 3W 1 CV7.4; 3W 1 CV7.4 | Johnson Controls

Johnson Controls | VH1845CL+9T4AGA

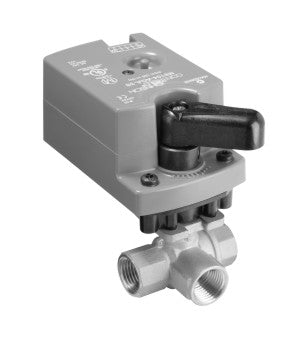

The photo is for representation purposes only and may not be a photo of product being purchased.


Details for VH1845CL+9T4AGA

3W 1 CV7.4; 3W 1 CV7.4

  • 1" 3-Way Characterized Control Valve
  • Hot Water Chilled Water Up To 50% Glycol / -22°F to 212°F
  • CV 7.4/4.7
  • 24 VAC
  • On/Off & Floating Point Without Timeout
  • Non-Spring Return
  • 35 in-lb Torque
  • M3 Screw Terminals
  • Female NPT
  • 60 sec Runtime
  • Close-Off 200 psi
  • Stainless Steel Ball & Stem
  • NEMA 1
  • 007.00 - 007.99
  • Meets Buy American Requirements
  • 007.00 - 007.99


Item Number VH1845CL+9T4AGA
Brand Johnson Controls
Category Valves & Valve Actuators
Section Ball 3-Way w/ Electric Actuator
Section Valves & Actuators
SubCategory Ball 3-Way w/ Electric Actuator
