VH1845BNH9A4AGA | 3/4" 3W BALL VALVE 11.7CV; 3/4" 3W BALL VALVE 11.7CV | Johnson Controls

Johnson Controls | VH1845BNH9A4AGA

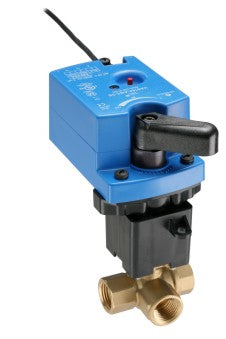

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for VH1845BNH9A4AGA

3/4" 3W BALL VALVE 11.7CV; 3/4" 3W BALL VALVE 11.7CV


  • 3/4" 3-Way Ball Valve - No Characterizing Disc
  • Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22°F to 284°F
  • CV 11.7/5.8
  • 24 VAC
  • Floating Point Without Timeout
  • Non-Spring Return
  • 35 in-lb Torque
  • 48 in. Plenum Cable
  • Female NPT
  • 60 sec Runtime
  • Close-Off 200 psi
  • Stainless Steel Ball & Stem
  • NEMA 2
  • 010.00 - 014.99
  • Meets Buy American Requirements
  • 010.00 - 014.99

Specifications

Item Number VH1845BNH9A4AGA
Brand Johnson Controls
Category Valves & Valve Actuators
Section Ball 3-Way w/ Electric Actuator
Section Valves & Actuators
SubCategory Ball 3-Way w/ Electric Actuator

Documents and manuals

Johnson Controls VH1845BNH9A4AGA Documents
