VH1841AF+9T4IGA | 3W 0.5 CV5; 3W 0.5 CV5 | Johnson Controls

Johnson Controls | VH1841AF+9T4IGA

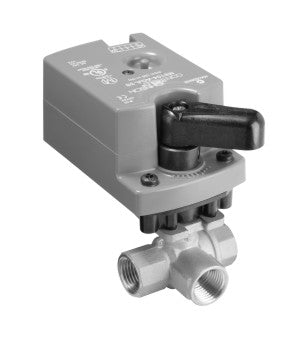

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for VH1841AF+9T4IGA

3W 0.5 CV5; 3W 0.5 CV5


  • 1/2" 3-Way Characterized Control Valve
  • Hot Water Chilled Water Up To 50% Glycol / -22°F to 212°F
  • CV 2.9/1.9
  • 24 VAC
  • On/Off & Floating Point With Timeout
  • Non-Spring Return
  • 35 in-lb Torque
  • M3 Screw Terminals
  • Female NPT
  • 60 sec Runtime
  • Close-Off 200 psi
  • Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
  • NEMA 1
  • 002.00 - 002.99
  • Meets Buy American Requirements
  • 002.00 - 002.99

Specifications

Item Number VH1841AF+9T4IGA
Brand Johnson Controls
Category Valves & Valve Actuators
Section Ball 3-Way w/ Electric Actuator
Section Valves & Actuators
SubCategory Ball 3-Way w/ Electric Actuator
