VH1245ES+948AGA | 1-1/2" 2W BALL VAL 46.8CV; 1-1/2" 2W BALL VAL 46.8CV | Johnson Controls

Johnson Controls | VH1245ES+948AGA

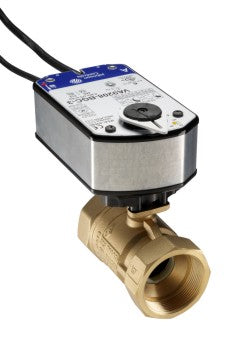

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for VH1245ES+948AGA

1-1/2" 2W BALL VAL 46.8CV; 1-1/2" 2W BALL VAL 46.8CV


  • 1 1/2" 2-Way Ball Valve - No Characterizing Disc
  • Hot Water Chilled Water Up To 50% Glycol / -22°F to 212°F
  • CV 46.8
  • 24 VAC/VDC
  • On/Off & Floating Point
  • Spring Return - Normally Closed
  • 70 in-lb Torque
  • 120 in. Plenum Cable
  • Female NPT
  • 150 sec Runtime
  • Close-Off 200 psi
  • Stainless Steel Ball & Stem
  • NEMA 2
  • Meets Buy American Requirements

Specifications

Item Number VH1245ES+948AGA
Brand Johnson Controls
Category Valves & Valve Actuators
Section Ball 2-Way w/ Electric Actuator
Section Valves & Actuators
SubCategory Ball 2-Way w/ Electric Actuator

Documents and manuals

Johnson Controls VH1245ES+948AGA Documents
