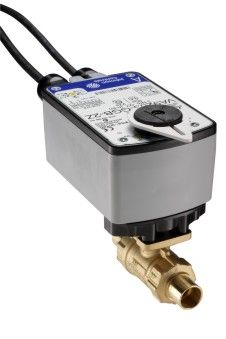

VG1275CP+943GGA | 1" 2W BALL VALVE 18.7CV; SS TRIM; SWEAT END CONN;PROP; SP CLOSED; W/O SW | Johnson Controls

1" 2W BALL VALVE 18.7CV; SS TRIM; SWEAT END CONN;PROP; SP CLOSED; W/O SW

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.

• 1" 2-Way Ball Valve - No Characterizing Disc
• Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
• CV 18.7
• 24 VAC/VDC
• Proportional [0(2) to 10 VDC]
• Spring Return - Normally Closed
• 27 in-lb Torque
• 120 in. Plenum Cable
• Sweat
• 90 sec Runtime
• Close-Off 200 psi
• Stainless Steel Ball & Stem
• NEMA 2
