VH1245DNH938AGC | 1-1/4" 2W BALL VAL 11.7CV; 1-1/4" 2W BALL VAL 11.7CV | Johnson Controls

Johnson Controls | VH1245DNH938AGC

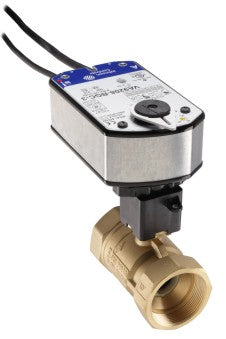

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for VH1245DNH938AGC

1-1/4" 2W BALL VAL 11.7CV; 1-1/4" 2W BALL VAL 11.7CV


  • 1 1/4" 2-Way Characterized Control Valve
  • Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22°F to 284°F
  • CV 11.7
  • 24 VAC/VDC
  • On/Off & Floating Point
  • Spring Return - Normally Open
  • 70 in-lb Torque
  • 48 in. Appliance Cable
  • 2 x SPDT
  • Female NPT
  • 150 sec Runtime
  • Close-Off 200 psi
  • Stainless Steel Ball & Stem
  • NEMA 2
  • Meets Buy American Requirements

Specifications

Item Number VH1245DNH938AGC
Brand Johnson Controls
Category Valves & Valve Actuators
Section Ball 2-Way w/ Electric Actuator
Section Valves & Actuators
SubCategory Ball 2-Way w/ Electric Actuator
