VG7441PT+822C00 | 2W1-1/4NPT18.5MP82 3-7# | Johnson Controls

2W1-1/4NPT18.5MP82 3-7#

Description

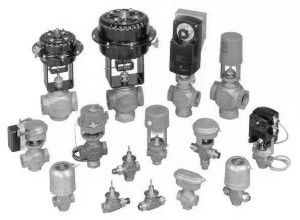

VG7000 Series Brass Trim Globe Valves with MP82 Series Pneumatic Actuators control hot or chilled water or 38 psig saturated steam. Refer to the VG7000 Series Bronze Control Valves Product Bulletin (LIT-977140) for important product application information.

Features

•  Industrial-grade, drawn-steel actuator fits VG7000 valves 1 through 2 in.
•  Corrosion-resistant, electro-painted finish
•  Effective diaphragm area: 25 sq. In.
• Controls: hot or chilled water, 38 psig saturated steam
•  Valve trim: brass
• Maximum supply air pressure: 25 psig (172 kPa)
•  Fluid temperature: 35°F to 284°F (2°C to 140°C), 38 psig saturated steam
•  Valve body static pressure rating: ANSI Class 250
•  Factory or field assembly
•  For optional V-9502-95 Positioner, change 00 at the end of the code number to 01

Repair information

If the VG7000 Series Globe Valve fails to operate within its specifications, replace the valve body, actuator, or entire assembly. For replacement parts, contact the nearest Johnson Controls® representative.

• 1 1/4" 2-Way Globe Valve
• CV 18.5
• 03-07 psig
• 25 sq. in. Effective Diaphragm Area
• Spring Return - Normally Closed
• Female NPT
• Brass Trim
