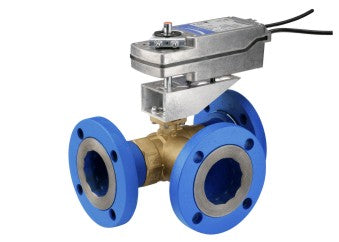

VG18A5KT+94NBAA | 3W 2-1/2 CV73 SR 120V; 3-WAY 2-1/2 IN FLANGE CV72.8; CONTROL PORT OPEN; 120 VAC; ON/OFF | Johnson Controls
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG18A5KT+94NBAA
Documents and manuals
Johnson Controls VG18A5KT+94NBAA Documents
Overview
Details for VG18A5KT+94NBAA
3W 2-1/2 CV73 SR 120V; 3-WAY 2-1/2 IN FLANGE CV72.8; CONTROL PORT OPEN; 120 VAC; ON/OFF
- 2 1/2" 3-Way Characterized Control Valve - Narrow Face-To-Face
- Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0°F to 284°F
- CV 74.0/47.0
- 120 VAC
- On/Off
- Spring Return - Normally Closed
- 177 in-lb Torque
- 48 in. Halogen Free Cable
- ANSI 150 Flange
- 24 to 57 sec Runtime
- Close-Off 50 psi
- Stainless Steel Ball & Stem
- NEMA 2
- 070.00 - 079.99
Specifications
Item Number | VG18A5KT+94NBAA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | On/Off |
Control Valves Type | Ball Valve |
Section | Ball 3-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Spring Return |
SubCategory | Ball 3-Way w/ Electric Actuator |
Valve Size | 2.5" - 3-Way |
Voltage | 120V |
