VG18A5HT+94NGGC | 3" 3W BALL VALVE 74 CV;; M9220-GGC-3 SPRING CW; 0-10V PROP. CONTROL; WITH TWO SWITCHES | Johnson Controls

Johnson Controls | VG18A5HT+94NGGC

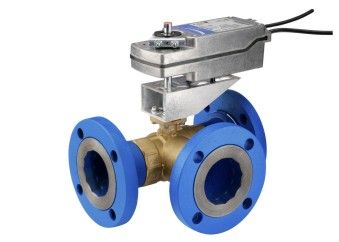

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG18A5HT+94NGGC

Documents and manuals

Johnson Controls VG18A5HT+94NGGC Documents

Overview

Details for VG18A5HT+94NGGC

3" 3W BALL VALVE 74 CV;; M9220-GGC-3 SPRING CW; 0-10V PROP. CONTROL; WITH TWO SWITCHES


  • 3" 3-Way Characterized Control Valve - Large Face-To-Face
  • Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0°F to 284°F
  • CV 74.0/47.0
  • 24 VAC/VDC
  • Proportional [0(2) to 10 VDC]
  • Spring Return - Normally Closed
  • 177 in-lb Torque
  • 48 in. Halogen Free Cable
  • 2 x SPDT
  • ANSI 150 Flange
  • 150 sec Runtime
  • Close-Off 50 psi
  • Stainless Steel Ball & Stem
  • NEMA 2
  • 070.00 - 079.99

Specifications

Item Number VG18A5HT+94NGGC
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input Modulating
Control Valves Type Ball Valve
Section Ball 3-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Spring Return
SubCategory Ball 3-Way w/ Electric Actuator
Valve Size 3 - 3-Way
Voltage 24V
