VG18A5GU+92NBGC | 3W 2.5 CV117 M9220-BGC-3; 3W 2.5 CV117 M9220-BGC-3 | Johnson Controls

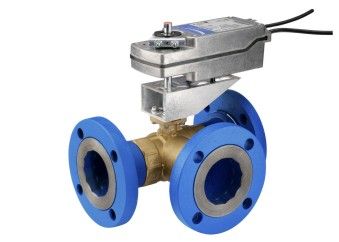

Johnson Controls | VG18A5GU+92NBGC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG18A5GU+92NBGC

Documents and manuals

Johnson Controls VG18A5GU+92NBGC Documents

Overview

Details for VG18A5GU+92NBGC

3W 2.5 CV117 M9220-BGC-3; 3W 2.5 CV117 M9220-BGC-3


  • 2 1/2" 3-Way Characterized Control Valve - Large Face-To-Face
  • Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0°F to 284°F
  • CV 117.0/74.0
  • 24 VAC/VDC
  • On/Off
  • Spring Return - Normally Open
  • 177 in-lb Torque
  • 48 in. Halogen Free Cable
  • 2 x SPDT
  • ANSI 150 Flange
  • 24 to 57 sec Runtime
  • Close-Off 50 psi
  • Stainless Steel Ball & Stem
  • NEMA 2
  • 100.00 - 199.99

Specifications

Item Number VG18A5GU+92NBGC
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input On/Off
Control Valves Type Ball Valve
Section Ball 3-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Spring Return
SubCategory Ball 3-Way w/ Electric Actuator
Valve Size 2.5" - 3-Way
Voltage 24V
