VG1845FT+938GGC | 2" 3W BALL VALVE 73.7CV; SS TRIM SPRG RTN CCWPROP CTL; WITH 2 SWITCHES | Johnson Controls

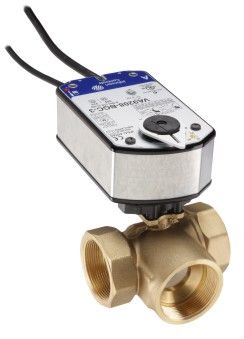

2" 3W BALL VALVE 73.7CV; SS TRIM SPRG RTN CCWPROP CTL; WITH 2 SWITCHES

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.

• 2" 3-Way Ball Valve - No Characterizing Disc
• Hot Water Chilled Water Up To 50% Glycol / -22°F to 212°F
• CV 73.7/36.8
• 24 VAC/VDC
• Proportional [0(2) to 10 VDC]
• Spring Return - Normally Open
• 70 in-lb Torque
• 48 in. Appliance Cable
• 2 x SPDT
• Female NPT
• 150 sec Runtime
• Close-Off 200 psi
• Stainless Steel Ball & Stem
• NEMA 2
• 070.00 - 079.99
