VG1845EPH938BAC | 1-1/2" 3W BALL VAL 18.7CV; SS TRIM; HI TEMP LINKAGE;ON/OFF; SP CCW; 2 SWITCH | Johnson Controls

Johnson Controls | VG1845EPH938BAC

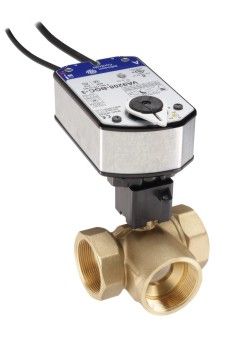

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG1845EPH938BAC

Documents and manuals

Johnson Controls VG1845EPH938BAC Documents

Overview

Details for VG1845EPH938BAC

1-1/2" 3W BALL VAL 18.7CV; SS TRIM; HI TEMP LINKAGE;ON/OFF; SP CCW; 2 SWITCH


  • 1 1/2" 3-Way Characterized Control Valve
  • Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22°F to 284°F
  • CV 18.7/11.7
  • 120 VAC
  • On/Off
  • Spring Return - Normally Open
  • 70 in-lb Torque
  • 48 in. Appliance Cable
  • 2 x SPDT
  • Female NPT
  • 55 to 71 sec Runtime
  • Close-Off 200 psi
  • Stainless Steel Ball & Stem
  • NEMA 2
  • 015.00 - 019.99

Specifications

Item Number VG1845EPH938BAC
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input On/Off
Control Valves Type Ball Valve
Section Ball 3-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Spring Return
SubCategory Ball 3-Way w/ Electric Actuator
Valve Size 1.5" - 3-Way
Voltage 120V
