VG1845EPH910HGC | 3W 1-1/2 NPT CV19 2SPDT; 3-WAY 1-1/2 NPT CV=18.5 SS_BALL THERMAL_BARRIER VA9310_ACTUATOR 2XSPDT | Johnson Controls

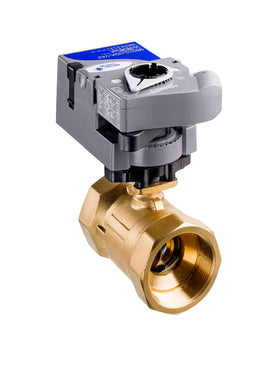

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG1845EPH910HGC
Documents and manuals
Johnson Controls VG1845EPH910HGC Documents
Overview
Details for VG1845EPH910HGC
3W 1-1/2 NPT CV19 2SPDT; 3-WAY 1-1/2 NPT CV=18.5 SS_BALL THERMAL_BARRIER VA9310_ACTUATOR 2XSPDT
- 1 1/2" 3-Way Characterized Control Valve
- Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22°F to 284°F
- CV 18.7/11.7
- 24 VAC/VDC
- Programmable
- Non-Spring Return
- 90 in-lb Torque
- 120 in. Plenum Cable
- 2 x SPDT
- Female NPT
- 90 sec Runtime
- Close-Off 200 psi
- Stainless Steel Ball & Stem
- NEMA 5
- 015.00 - 019.99
Specifications
| Item Number | VG1845EPH910HGC |
| Brand | Johnson Controls |
| Category | Valves & Valve Actuators |
| Control Input | Modulating |
| Control Valves Type | Ball Valve |
| Section | Ball 3-Way w/ Electric Actuator |
| Section | Valves & Actuators |
| Spring Return | Non-Spring Return |
| SubCategory | Ball 3-Way w/ Electric Actuator |
| Valve Size | 1.5" - 3-way |
| Voltage | 24V |
