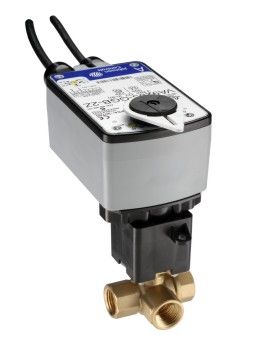

3/4" 3W BALL VALVE 11.7CV; SS TRIM; HI TEMP LINKAGE;SPRING CCW; ONE SWITCH
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/ off, floating, or proportional control. Refer to the VG1000 Series Forged Brass Ball Valves Product Bulletin (LIT-977132) for important product application information.
Features
- Forged brass body — provides 580 psig static pressure rating.
- 300 series stainless steel ball and stem assembly — tolerates high-temperature water or 15 psi saturated steam with fluid temperatures of -22°F to 284°F (-30°C to 140°C) or where a higher degree of corrosion protection is desired.
- Ethylene propylene diene monomer (EPDM) double o-ring stem seal — provides a leak-free seal; the packing has been tested and is leak-free after 200,000 cycles in iron-oxide contaminated water.
- Blowout-proof stem — protects the user from the risk of injury.
- 3/4" 3-Way Ball Valve - No Characterizing Disc
- Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22°F to 284°F
- CV 11.7/5.8
- 24 VAC/VDC
- Floating Point
- Spring Return - Normally Open
- 27 in-lb Torque
- 48 in. Appliance Cable
- 1 x SPDT
- Female NPT
- 90 sec Runtime
- Close-Off 200 psi
- Stainless Steel Ball & Stem
- NEMA 2
- 010.00 - 014.99
Specifications
Item Number | VG1845BNH923AGB |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | Floating |
Control Valves Type | Ball Valve |
Section | Ball 3-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Spring Return |
SubCategory | Ball 3-Way w/ Electric Actuator |
Valve Size | 0.75" - 3-Way |
Voltage | 24V |
