VG12A5KU+94NGGC | 2W 2-1/2 CV116 SR 24V; 2-WAY 2-1/2 IN FLANGE CV116; CONTROL PORT OPEN; 24 VAC/VDC; PROPORTIONAL | Johnson Controls

Johnson Controls | VG12A5KU+94NGGC

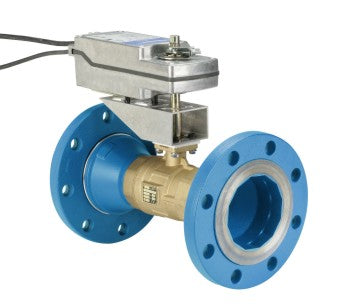

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG12A5KU+94NGGC
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Johnson Controls VG12A5KU+94NGGC Documents

Datasheet Installation Instructions More Info

Overview

Details for VG12A5KU+94NGGC

2W 2-1/2 CV116 SR 24V; 2-WAY 2-1/2 IN FLANGE CV116; CONTROL PORT OPEN; 24 VAC/VDC; PROPORTIONAL


  • 2 1/2" 2-Way Characterized Control Valve - Narrow Face-To-Face
  • Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0?F to 284?F
  • CV 117.0
  • 24 VAC/VDC
  • Proportional [0(2) to 10 VDC]
  • Spring Return - Normally Closed
  • 177 in-lb Torque
  • 48 in. Halogen Free Cable
  • 2 x SPDT
  • ANSI 150 Flange
  • 150 sec Runtime
  • Close-Off 100 psi
  • Stainless Steel Ball & Stem
  • NEMA 2

Specifications

Item Number VG12A5KU+94NGGC
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input Modulating
Control Valves Type Ball Valve
Section Ball 2-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Spring Return
SubCategory Ball 2-Way w/ Electric Actuator
Valve Size 2.5" - 2-Way
Voltage 24V
