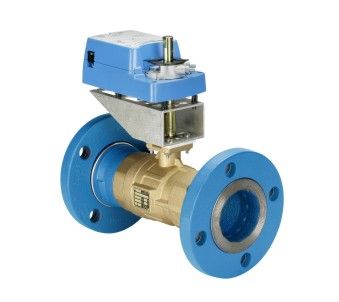

VG12A5JU+924GGA | 4" 2W BALL VALVE 117 CV; M9124-GGA-2 NON-SPRG RTN 0-10V PROP. CONTROL WITHOUT SWITCHES | Johnson Controls
Overview
Details for VG12A5JU+924GGA
4" 2W BALL VALVE 117 CV; M9124-GGA-2 NON-SPRG RTN 0-10V PROP. CONTROL WITHOUT SWITCHES
Description
The VG1000 Series Flanged Ball Valves are primarily designed to regulate the flow of hot water, chilled water, and 50/50 glycol solutions to the demand of a controller in HVAC systems. The valves come in sizes of 2-1/2 in., 3 in., 4 in., 5 in., and 6 in. These American Society of Mechanical Engineers (ASME) Class 150 flanged valves come in both two- and three-way configurations. Johnson Controls offers valve, linkage, and actuator assemblies for factory or field mounting with either spring return or non-spring return actuators. Refer to the VG1000 Series Flanged Ball Valves Product Bulletin (LIT-12011228) for important product application information and single point of contact information.
- 4" 2-Way Characterized Control Valve - Large Face-To-Face
- Hot Water Chilled Water Up To 50% Glycol 25# Steam / 0?F to 284?F
- CV 117.0
- 24 VAC/VDC
- Proportional [0(2) to 10 VDC]
- Non-Spring Return
- 210 in-lb Torque
- 0
- ANSI 150 Flange
- 115 to 175 sec Runtime
- Close-Off 100 psi
- Stainless Steel Ball & Stem
- NEMA 2
Specifications
Item Number | VG12A5JU+924GGA |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Control Input | Modulating |
Control Valves Type | Ball Valve |
Section | Ball 2-Way w/ Electric Actuator |
Section | Valves & Actuators |
Spring Return | Non-Spring Return |
SubCategory | Ball 2-Way w/ Electric Actuator |
Valve Size | 4 - 2-Way |
Voltage | 24V |
