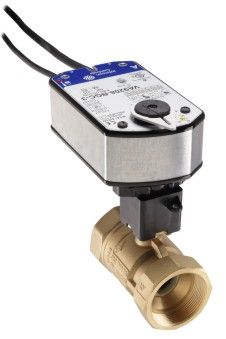

2" 2W BALL VALVE 73.7CV; SS TRIM; HI TEMP LINKAGE;SPRING OPEN; 2 SWITCHES
Description
VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of two and three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, VA9109, and M9100 Series Non-Spring Return and VA9203 and VA9208 Series Spring Return Electric Actuators foron/off, floating, or proportional control. Refer to the VG1000 Series Forged Brass Ball Valves Product Bulletin (LIT-977132) for important product application information.
Features
- Forged brass body — provides 580 psig static pressure rating.
- Graphite-reinforced polytetrafluoroethylene (PTFE) seats — include 15 per cent graphite-reinforced ball seals, providing better wear resistance.
- 500:1 rangeability — provides accurate control under all load conditions.
- Maintenance-free design — performs without failure in excess of 200,000 full stroke cycles in iron-oxide contaminated water.
- 2" 2-Way Ball Valve - No Characterizing Disc
- Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22?F to 284?F
- CV 73.7
- 24 VAC/VDC
- Proportional [0(2) to 10 VDC]
- Spring Return - Normally Open
- 70 in-lb Torque
- 48 in. Appliance Cable
- 2 x SPDT
- Female NPT
- 150 sec Runtime
- Close-Off 200 psi
- Stainless Steel Ball & Stem
- NEMA 2
