VG1245FT+938BAC | 2" 2W BALL VALVE 73.7CV; SS TRIM SPRING OPENWITH TWO SWITCHES | Johnson Controls

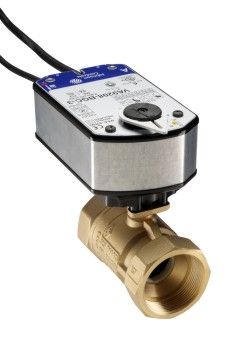

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VG1245FT+938BAC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Johnson Controls VG1245FT+938BAC Documents

Datasheet Installation Instructions More Info

Overview

Details for VG1245FT+938BAC

2" 2W BALL VALVE 73.7CV; SS TRIM SPRING OPENWITH TWO SWITCHES

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.

2" 2-Way Ball Valve - No Characterizing Disc
Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
CV 73.7
120 VAC
On/Off
Spring Return - Normally Open
70 in-lb Torque
48 in. Appliance Cable
2 x SPDT
Female NPT
55 to 71 sec Runtime
Close-Off 200 psi
Stainless Steel Ball & Stem
NEMA 2

Specifications

Item Number	VG1245FT+938BAC
Brand	Johnson Controls
Category	Valves & Valve Actuators
Control Input	On/Off
Control Valves Type	Ball Valve
Section	Ball 2-Way w/ Electric Actuator
Section	Valves & Actuators
Spring Return	Spring Return
SubCategory	Ball 2-Way w/ Electric Actuator
Valve Size	2 - 2-Way
Voltage	120V
