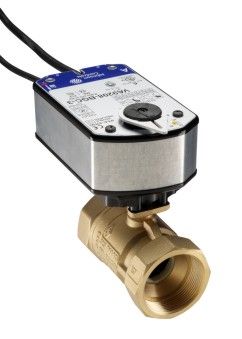

VG1245ES+958BGA | 1-1/2" 2W BALL VAL 46.8CV; SS TRIM SPRING CLOSEDON/OFF; WITHOUT SWITCH | Johnson Controls

1-1/2" 2W BALL VAL 46.8CV; SS TRIM SPRING CLOSEDON/OFF; WITHOUT SWITCH

Description

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, M9106, M9109, and M9100 Series Non-Spring-Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/ off, floating, or proportional control. Refer to the VG1000 Series Forged Brass Ball Valves Product Bulletin (LIT-977132) for important product application information.

Features

•  Forged brass body — provides 580 psig static pressure rating.
•  200 psi closeoff pressure rating — provides tight shutoff.
•  Graphite-reinforced Polytetrafluoroethylene (PTFE) seats — include 15 per cent graphite-reinforced ball seals, providing better wear resistance.
•  300 series stainless steel ball and stem assembly — tolerates high-temperature water or 15 psi saturated steam with fluid temperatures of -22°F to 284 ° F (-30°C to 140 ° C) or where a higher degree of corrosion protection is desired.
• 500:1 rangeability — provides accurate control under all load conditions.

• 1 1/2" 2-Way Ball Valve - No Characterizing Disc
• Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
• CV 46.8
• 24 VAC/VDC
• On/Off
• Spring Return - Normally Closed
• 70 in-lb Torque
• 48 in. Appliance Cable
• Female NPT
• 55 to 71 sec Runtime
• Close-Off 200 psi
• Stainless Steel Ball & Stem
• NEMA 2
