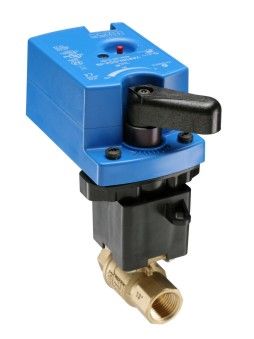

VG1245CNH9T4GGA | 1" 2W BALL VALVE 11.7CV; SS TRM NSRVA9104-GGA-3S ACT WITHM9000-561 THERMAL BARRIER | Johnson Controls

Johnson Controls | VG1245CNH9T4GGA
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG1245CNH9T4GGA

Documents and manuals

Johnson Controls VG1245CNH9T4GGA Documents


Details for VG1245CNH9T4GGA


VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.
  • 1" 2-Way Characterized Control Valve
  • Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22?F to 284?F
  • CV 11.7
  • 24 VAC
  • Proportional [0(2) to 10 VDC]
  • Non-Spring Return
  • 35 in-lb Torque
  • M3 Screw Terminals
  • Female NPT
  • 60 sec Runtime
  • Close-Off 200 psi
  • Stainless Steel Ball & Stem
  • NEMA 1


Item Number VG1245CNH9T4GGA
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input Modulating
Control Valves Type Ball Valve
Section Ball 2-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Non-Spring Return
SubCategory Ball 2-Way w/ Electric Actuator
Valve Size 1 - 2-Way
Voltage 24V
