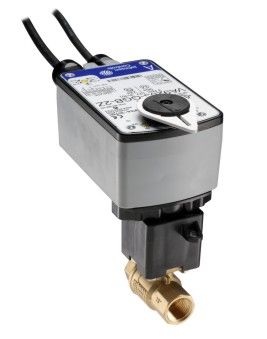

VG1245BLH943GGB | 3/4" 2W BALL VALVE 7.4CV; SS TRIM; HI TEMP LINKAGE;SPRING CLOSED; ONE SWITCH | Johnson Controls

3/4" 2W BALL VALVE 7.4CV; SS TRIM; HI TEMP LINKAGE;SPRING CLOSED; ONE SWITCH

VG1000 Series Ball Valves are designed to regulate the flow of hot or chilled water and, for some models, low-pressure steam in response to the demand of a controller in HVAC systems. Available in sizes 1/2 through 2 in. (DN15 through DN50), this family of twoand three-way forged brass valves is factory or field mounted to Johnson Controls® VA9104, and VA9300 Series Non-Spring Return and VA9203 and VA9208 Series Spring-Return Electric Actuators for on/off, floating, or proportional control.

• 3/4" 2-Way Characterized Control Valve
• Hot Water Chilled Water Up To 50% Glycol 15# Steam / -22?F to 284?F
• CV 7.4
• 24 VAC/VDC
• Proportional [0(2) to 10 VDC]
• Spring Return - Normally Closed
• 27 in-lb Torque
• 48 in. Appliance Cable
• 1 x SPDT
• Female NPT
• 90 sec Runtime
• Close-Off 200 psi
• Stainless Steel Ball & Stem
• NEMA 2
