VG1241DR+910HGC | 2W 1-1/4 NPT CV29 2SPDT; 2-WAY 1-1/4 NPT CV=28.9 BRASS_BALL VA9310_ACTUATOR 2XSPDT | Johnson Controls
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Johnson ControlsSKU: VG1241DR+910HGC

Web Price:

$302.46
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

VG1241DR+910HGC | 2W 1-1/4 NPT CV29 2SPDT; 2-WAY 1-1/4 NPT CV=28.9 BRASS_BALL VA9310_ACTUATOR 2XSPDT | Johnson Controls

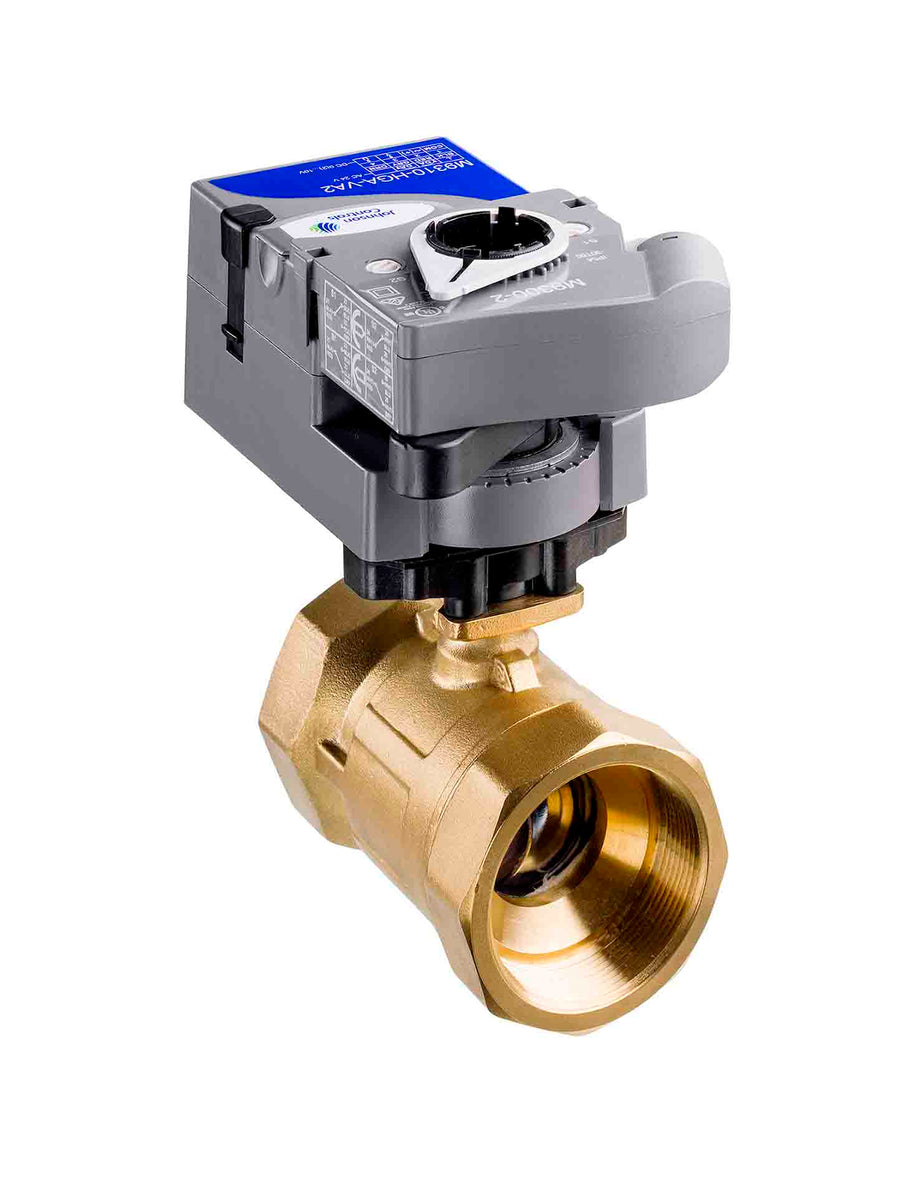

Johnson Controls | VG1241DR+910HGC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VG1241DR+910HGC

Documents and manuals

Johnson Controls VG1241DR+910HGC Documents

Overview

Details for VG1241DR+910HGC

2W 1-1/4 NPT CV29 2SPDT; 2-WAY 1-1/4 NPT CV=28.9 BRASS_BALL VA9310_ACTUATOR 2XSPDT


  • 1 1/4" 2-Way Ball Valve - No Characterizing Disc
  • Hot Water Chilled Water Up To 50% Glycol / -22?F to 212?F
  • CV 29.2
  • 24 VAC/VDC
  • Programmable
  • Non-Spring Return
  • 90 in-lb Torque
  • 120 in. Plenum Cable
  • 2 x SPDT
  • Female NPT
  • 90 sec Runtime
  • Close-Off 200 psi
  • Chrome-Plated Brass Ball & Nickel-Plated Brass Stem
  • NEMA 5

Specifications

Item Number VG1241DR+910HGC
Brand Johnson Controls
Category Valves & Valve Actuators
Control Input Modulating
Control Valves Type Ball Valve
Section Ball 2-Way w/ Electric Actuator
Section Valves & Actuators
Spring Return Non-Spring Return
SubCategory Ball 2-Way w/ Electric Actuator
Valve Size 1.25" - 2-Way
Voltage 24V
