VFG060HB2935HGC | BTRFLY 3-WAY G 6" CV=1850; 3-WAY G 6" FLANGE ANSI125/150 CV=1850; LAST POS; 24VAC+/-20%; 24VDC+/-10% | Johnson Controls

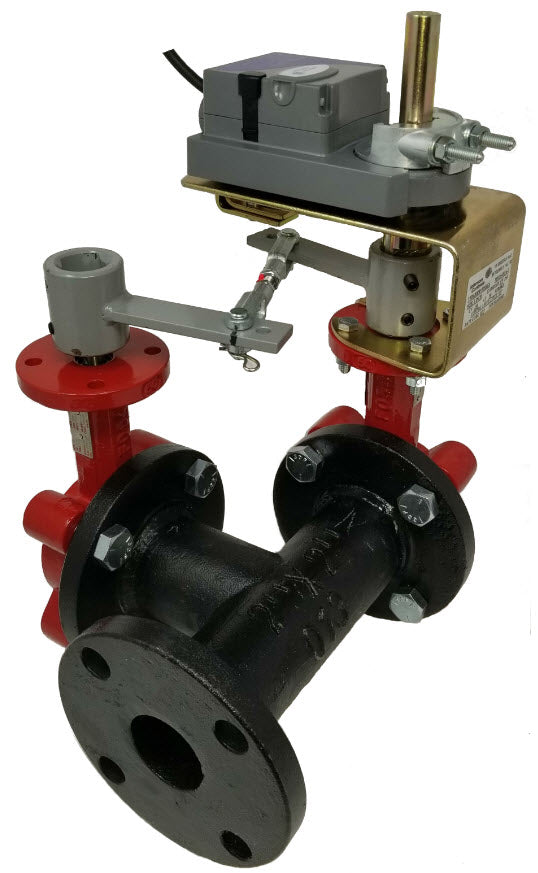

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VFG060HB2935HGC
Documents and manuals
Johnson Controls VFG060HB2935HGC Documents
Overview
Details for VFG060HB2935HGC
BTRFLY 3-WAY G 6" CV=1850; 3-WAY G 6" FLANGE ANSI125/150 CV=1850; LAST POS; 24VAC+/-20%; 24VDC+/-10%
- 6" 3-Way Butterfly Valve
- Ductile Iron Nylon 11 Coated Disc
- Chilled Water Hot Water Up to 50% Glycol / -40..250°F
- CV90=1850 CV60=567
- 24 VAC/VDC
- Programmable - Dual Actuator
- Non-Spring Return - Style G
- 310 in-lb Torque
- 4 ft. Halogen-Free Cable
- 2 x SPDT
- ANSI 125/150 Flange
- 150 sec Runtime
- Cast Iron Body
- Close-Off 175 psi
- NEMA 5
Specifications
Item Number | VFG060HB2935HGC |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Section | Butterfly 3 Way w/ Electric Actuator |
Section | Valves & Actuators |
SubCategory | Butterfly 3 Way w/ Electric Actuator |
