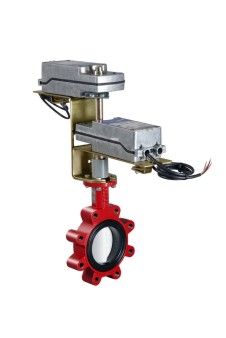

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to VFC040HB294NAGC
Documents and manuals
Johnson Controls VFC040HB294NAGC Documents
Overview
Details for VFC040HB294NAGC
VFC040HB294NAGC; VFC040HB294NAGC
VF Series Standard-Pressure, Standard-Temperature Butterfly Valves are specifically designed for a wide range of HVAC applications, including two-position and modulating control of hot, chilled, or condenser water, and 50/50 glycol solutions. All valves are factory tested for bubble-tight shutoff at 100% of the fully rated pressure. These valves are also bidirectional, allowing positive shutoff with the flow in either direction. Two-way configurations are available in sizes from 2 through 20 in. Three-way assemblies have two valves that are linked together and mounted on a flanged, cast-iron tee. Three-way configurations are available in sizes from 2 through 12 in. Standard pressure valve ratings available include 175 psig for 2 through 12 in. valves, 150 psig for 14 through 20 in. valves, and 50 psig for 4 through 20 in. valves.- 4" 2-Way Butterfly Valve
- Ductile Iron Nylon 11 Coated Disc
- Chilled Water Hot Water Up to 50% Glycol / -40..250?F
- CV90=841 CV60=274
- 24 VAC/VDC
- Floating Point - Dual Actuator
- Spring Return - Normally Closed
- 177 in-lb Torque
- 4 ft. Halogen-Free Cable
- 2 x SPDT
- ANSI 125/150 Flange
- 150 sec Runtime
- Cast Iron Body
- Close-Off 175 psi
- NEMA 2
Specifications
Item Number | VFC040HB294NAGC |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Section | Butterfly 2 Way w/ Electric Actuator |
Section | Valves & Actuators |
SubCategory | Butterfly 2 Way w/ Electric Actuator |
