Details for VFN020HB+92NAGC
VFN020HB+92NAGC; VFN020HB+92NAGC
Description

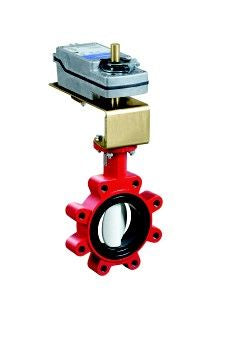

VF Series M9000 Electrically Actuated, Standard-Pressure, Standard-Temperature, Two-Way Butterfly Valves are specifically designed for a wide range of HVAC applications, including two-position and modulating control of hot, chilled, or condenser water, and 50/50 glycol solutions. These valves are also bidirectional, allowing positive shutoff with the flow in either direction. Two-way configurations are available in sizes 2 through 6 in. non-spring return, and 2 through 5 in. spring return. M9000 electrically actuated, non-weather shield models feature an integral handle for manual positioning of the valve, independent of a power supply.
Features
- ow seating/unseating torques
- bubble-tight shutoff
- broad range of pre-assembled actuators
- compatible with all types of American National Standards Institute (ANSI) 125/150 slip-on and weld-neck flanges
- high-integrity components
- M9000 electric actuators available with or without a rugged, factory-installed weather shield
- M9000 electric actuators available with or without end switches
- 2" 2-Way Butterfly Valve
- Ductile Iron Nylon 11 Coated Disc
- Chilled Water Hot Water Up to 50% Glycol / -40..250?F
- CV90=144 CV60=61
- 24 VAC/VDC
- Floating Point
- Spring Return - Normally Open - Normally Open
- 177 in-lb Torque
- 4 ft. Halogen-Free Cable
- 2 x SPDT
- ANSI 125/150 Flange
- 150 sec Runtime
- Cast Iron Body
- Close-Off 175 psi
- NEMA 2
Specifications
Item Number | VFN020HB+92NAGC |
Brand | Johnson Controls |
Category | Valves & Valve Actuators |
Section | Butterfly 2 Way w/ Electric Actuator |
Section | Valves & Actuators |
SubCategory | Butterfly 2 Way w/ Electric Actuator |
