E34-480100-J01-X-SCS-NS | Class 3400 Meter, 277/480V, 100A, JIC Steel Enclosure, EZ-7, EZ-7 Ethernet Protocol, Expanded Feature Pack - Load Control, Current Sensors NOT Included (Meter Only) | Honeywell
Documents and manuals
Honeywell E34-480100-J01-X-SCS-NS Documents
Overview
Details for E34-480100-J01-X-SCS-NS
Class 3400 Meter, 277/480V, 100A, JIC Steel Enclosure, EZ-7, EZ-7 Ethernet Protocol, Expanded Feature Pack - Load Control, Current Sensors NOT Included (Meter Only)
Class 3400 Meter, 277/480V, 100A, JIC Steel Enclosure, EZ-7, EZ-7 Ethernet Protocol, Expanded Feature Pack - Load Control, No 2V Output Current Sensors IncludedDescription

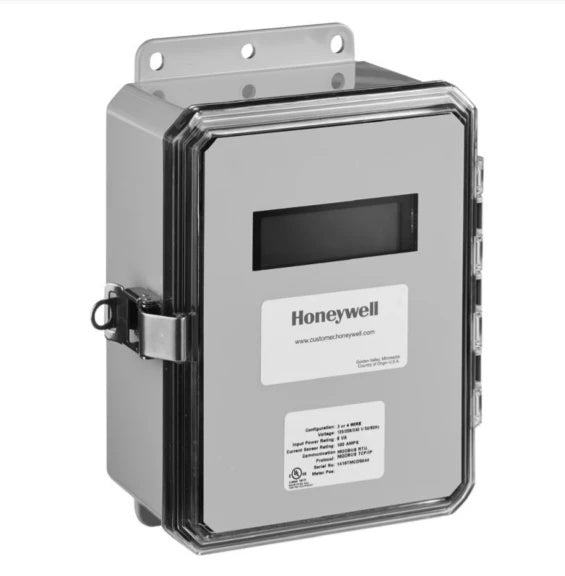

The E34-480100-J01-X-SCS-NS is a Class 3400 Smart Meter from E-mon for monitoring energy usage in tenant buildings, apartments, offices, and industrial environments. The meter will suit most building management systems and allows easy access to power usage data (directly from the LCD screen or remotely using E-Mon Energy software or web interface).
The Smart Meter easily integrates into most management systems. It requires little effort to link with single-phase circuits, load panels, or building management software. The meter provides precise energy usage data instead, making it a perfect device for energy management and expenses optimization
Specifications (Class 3400 Smart Meters)
E-Mon Class 3400 Smart Meters utilize 0-2 VAC output. The currents sensors can be mounted (paralleled) up to about 500 feet (150 meters) away from the meter. Other specifications for this series include:
- Available in three-phase & three-wire, three-phase & four-wire circuits, and single-phase & three-wire configurations
- 100-3200 amp sensors
- UL/CUL safety standard
- ANSI C12.20 & MID standards for accuracy
- LCD provides readings and installation diagnostic data
- BACnet (BTL-certified) and LonWorks (LonMark-certified) communication protocols
- The fifth & sixth channels allow monitoring inputs from third-party metering equipment (BTU, water, gas, and others) using the E-Mon software suite
- Multi-channel connections with links using an RS-485 communication standard (provided you don’t exceed 52 simultaneous connections)
- Can store kW and kVAR data for over 72 days (first-out format)
For more information about Class 3400 Smart Meter, make sure to read the product’s instruction manual.
Features and Benefits
The Class 3400 Smart Meters is a leading energy management equipment with:
- Precise measurement. You can learn the actual energy usage data for every tenant instead of approximates and ratio-based estimates.
- Communication protocols. The smart meter supports six communication protocols (BACnet IP & MS/TP, EZ7, Modbus RTU & TCP/IP, LonWorks FT-10) and four connector types to ensure maximal compatibility with your systems.
- Software suite. E-Mon energy software can help you automate energy monitoring to help you optimize power consumption levels.
- For indoor & outdoor applications. Industrial-grade steel casing and NEMA 4 enclosure ensure that the smart meters can be used both indoors and outdoors.
- Maintenance-free. The device has a long service life and requires virtually no maintenance.
- Easy to understand. Quickly learn about different types of reading from the LCD screen or via remote software.
- Fast set up. You can mount the device without disconnecting the cabling and configure it in a matter of minutes.
Specifications
Item Number | E34-480100-J01-X-SCS-NS |
Brand | Honeywell |
Amps | 100A |
Housing | JIC Steel Enclosure |
Sensors | Not Included (Purchase Separately) |
Series | Class 3400 Meter |
Signal Output/Protocol | EZ-7 |
Signal Output/Protocol | EZ-7 Ethernet Protocol |
Type | Meters |
Voltage | 277/480V |
