E20-480800-JKIT | Class 2000 Meter, 277/480V, 800A, JIC Steel Enclosure, Pulse Output, 3 Split-Core Current Sensors with 2V Output | Honeywell

Honeywell | E20-480800-JKIT

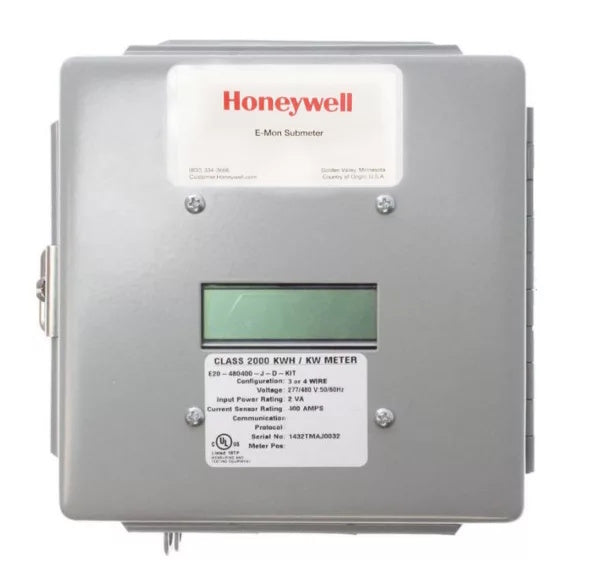

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to E20-480800-JKIT

Documents and manuals

Honeywell E20-480800-JKIT Documents

Overview

Details for E20-480800-JKIT

Class 2000 Meter, 277/480V, 800A, JIC Steel Enclosure, Pulse Output, 3 Split-Core Current Sensors with 2V Output

E-Mon Class 2000 3-Phase Pulse Meter

Three-phase kWh/kW (demand) meter used to monitor electric power usage of individual loads after the utility meter

E-Mon Class 2000 Meters are designed to provide the basic building blocks of an affordable, effective and scalable energy management system. These easy to install meters can monitor anything from a specific load panel to an entire building.

Energy usage data can be viewed via meters, LCD display for easy walk up and read, monitoring of energy consumption. Remote metering via E-Mon Energy Automatic Meter reading (AMR) or Web-Mon Web Enabled Monitoring systems is also easily interfaced for tenant billing energy management and cost allocation.



Features & Benefits:
  • Direct-read 2-line alpha-numeric LCD display without multiplier displays cumulative kWh and “real-time” kW load
  • Available in MMU (Multiple Meter Unit) enclosures containing up to 24 meters in one compact enclosure
  • Revenue-grade accuracy
  • Current sensor installation diagnostics
  • Fixed pulse output
  • Non-volatile memory
  • Maintains reading in the event of power failure
  • Meter can be used on the following configurations: 2-phase/3-wire and 3-phase/3- or 4-wire with included current sensors from 100-3200A
  • A demand option displays the kW peak demand over a 15- or 30-minute demand interval
  • Industrial grade JIC steel and optional NEMA 4X polycarbonate enclosure (standard) with padlocking hasp & mounting flanges for indoor/outdoor installation.
Certifications:
  • California CTEP
  • California Energy Commission
  • UL/CUL Listed
  • ANSI C12.20
  • New York City approved
  • Con Edison approved for RSP program

Specifications

Item Number E20-480800-JKIT
Brand Honeywell
Amps 800A
Housing JIC Steel Enclosure
Sensors Included
Series Class 2000 Meter
Signal Output/Protocol Pulse Output
Type Meters
Voltage 277/480V
