E20-208200-RKIT | Class 2000 Meter, 120/208-240V, 200A, NEMA 4X Enclosure, Pulse Output, 3 Split-Core Current Sensors with 2V Output | Honeywell

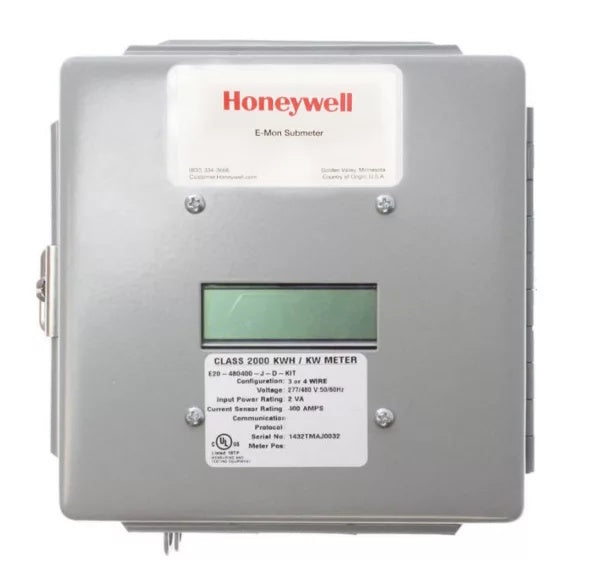

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to E20-208200-RKIT
Documents and manuals
Honeywell E20-208200-RKIT Documents
Overview
Details for E20-208200-RKIT
Class 2000 Meter, 120/208-240V, 200A, NEMA 4X Enclosure, Pulse Output, 3 Split-Core Current Sensors with 2V Output
Description
- Direct-read 2-line alpha-numeric LCD display without multiplier displays cumulative kWh & "real-time" kW load.
- Demand option displays kW/Demand and kW Peak date and time (15 minute interval standard, 30 minute interval available.)
- Available in MMU (Multiple Meter Unit) enclosures containing up to 24 meters in one compact enclosure.
- Patented 0-2 volt output split-core current sensors promote enhanced safety and accurate remote mounting of current sensors up to 2000 feet from meter without power interruption. (Optional solid-core sensors available for 100 & 200 Amp meters.)
- Onboard installation diagnostics & verification system.
- Parallel up to three (3) sets of current sensors for cumulative reading.
- Meter can be used on the following configurations: 3-Phase, 4-Wire 3-Phase, 3-Wire 2-Phase, 3-Wire For other configurations contact factory.
- Fixed-value pulse output.
- Industrial grade JIC steel enclosure (standard) with padlocking hasp & mounting flanges for indoor installation. Knockouts 1 1/16” (3/4” cond.) bottom, 7/8” (1/2” cond.) top.
- Optional NEMA 4X polycarbonate enclosure with padlocking hasp & mounting flanges for indoor/outdoor installation (stand alone) with one 1 1/16” KO on bottom of enclosure.
- Non-volatile Memory.
- UL/CUL Listed.
- Revenue Grade Accuracy. Certified by independent test lab to ANSI C12.20 national accuracy standards. (+/- 0.2% from 1% to 100% of rated load.)
- California CTEP approved for use with solid-core current sensors. Listed by the California Energy Commission.
- New York City approved, Con Edison approved for RSP program.
Specifications
Item Number | E20-208200-RKIT |
Brand | Honeywell |
Amps | 200A |
Housing | NEMA 4X Enclosure |
Sensors | Included |
Series | Class 2000 Meter |
Signal Output/Protocol | Pulse Output |
Type | Meters |
Voltage | 120/208-240V |
