MVS-5 | Miniature vacuum switch | min. set point 9" w.c. (21 mbar) | max. set point 80" w.c. (199 mbar) | 1/8" male NPT process connection. | Dwyer

Miniature vacuum switch, min. set point 9" w.c. (21 mbar), max. set point 80" w.c. (199 mbar), 1/8" male NPT process connection.

Dwyer | MVS-5

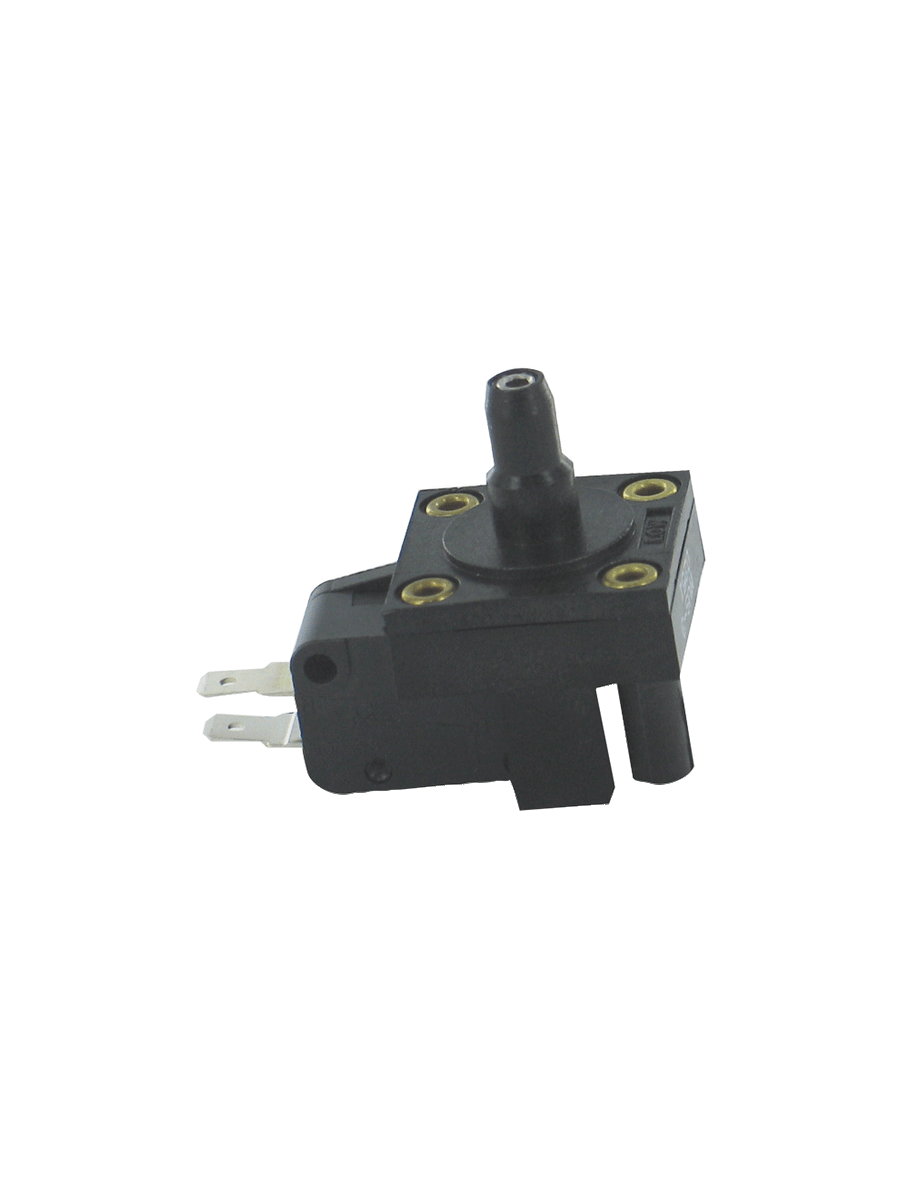

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MVS-5

Documents and manuals

Dwyer MVS-5 Documents

Overview

Details for MVS-5

See catalog product page for full listing

Miniature vacuum switch | min. set point 9" w.c. (21 mbar) | max. set point 80" w.c. (199 mbar) | 1/8" male NPT process connection.

SERIES MVS MINIATURE VACUUM SWITCH

SPDT N/O or N/C Switch, Adjustable Set Point, Ideal for OEM's

Compact, lightweight, and adjustable, the Series MVS Miniature Vacuum Switch is specially designed for OEM applications. This low cost switch has a minimum life expectancy of 10 million cycles and has an extremely fast response time. Typical applications for the MVS are HVAC, home appliance, dairy systems, medical, office equipment, and pump control.

NOTE: 50 PIECE MINIMUM ORDER.

Product Applications

  • OEM
  • HVAC applications
  • Medical equipment
  • Dairy equipment
  • Pump control
  • High switch cycle means long life for extended duty applications

Specifications

Series
MVS MINIATURE VACUUM SWITCH
Category/Type
Pressure
Type
Single Pressure
Series
MVS MINIATURE VACUUM SWITCH
Service
Air or compatible fluids on "high side".
Wetted Materials
Housing: polycarbonate; Diaphragm: polyurethane.
Temperature Limits
40 to 150°F (4 to 66°C).
Pressure Limits
Up to maximum range.
Repeatability
±20%.
Switch Type
SPDT normally open or normally closed.
Electrical Rating
Range 3 to 8" w.c.: 3 A; 125/250 VAC; Range 9 to 80" w.c.: 10 A; 125/250 VAC; Range 81 to 330" w.c.: 15 A; 125/250 VAC.
Contacts
Silver with brass terminals.
Electrical Connections
Terminals - 0.187" x 0.20: spade for use with quick disconnects.
Process Connections
Models MVS-1 to MVS-3: Smooth port 0.25" diameter; Models MVS-4 to MVS-6: 1/8" male NPT.
Mounting
Use #2 screws through eyelets.
Weight
Less than 19 g.
Agency Approvals
cULus.
