TSWB-010 | Temperature/water level switch | 115 VAC | °F. | Dwyer

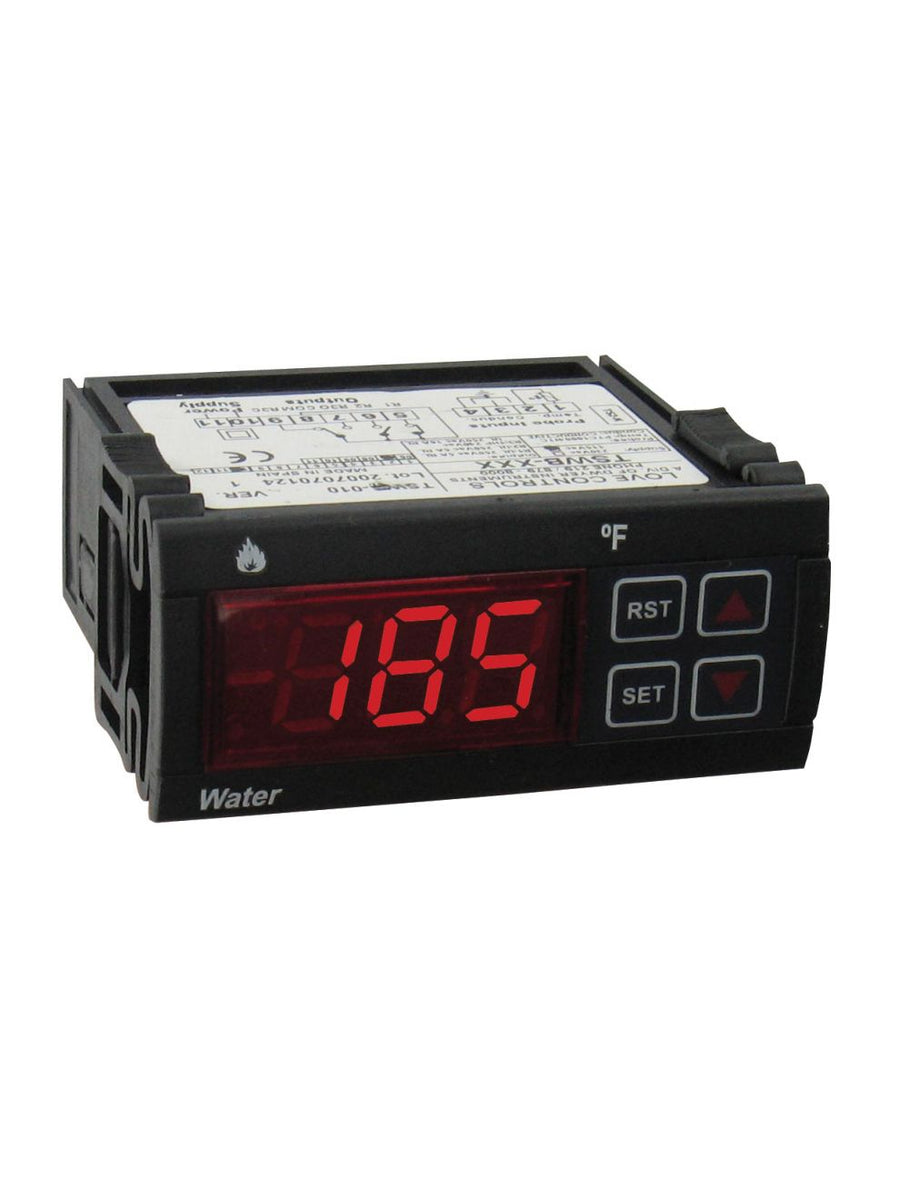

Temperature/water level switch, 115 VAC, °F.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TSWB-010
Documents and manuals
Dwyer TSWB-010 Documents
Overview
Details for TSWB-010
See catalog product page for full listing
Temperature/water level switch | 115 VAC | °F.
SERIES TSWB DIGITAL TEMPERATURE/WATER LEVEL SWITCH
Two Temperature Set Points, Low Water Level Alarm
The Series TSWB Digital Temperature/Water Level Switch has a high and a low set point for controlling the water temperature. The low set point can either be manually or automatically reset. This control also has a conductivity probe input. This input supplies 12 VAC to the conductivity probe to check for low water condition. There are three relay outputs which can be assigned in the field to the high temperature set point, low temperature set point or the low water level input. The Model TS2-K configuration key can make configuring multiple controls quick and easy.
Product Applications
- Wood or pellet boilers
- 3 outputs for high temp, low temp or input alarm
- Conductivity probe input for water level monitoring
- Configuration key
Specifications
- Series
- TSWB DIGITAL TEMPERATURE/WATER LEVEL SWITCH
- Category/Type
- Temperature
- Type
- Switches
- Series
- TSWB DIGITAL TEMPERATURE/WATER LEVEL SWITCH
- Probe Range
- PTC -58 to 302ºF (-50ºC to 150ºC); NTC -58 to 230ºF (-50ºC to 110ºC).
- Probe Temperature Input
- PTC(1000Ω @ 25°C); NTC (10KΩ @25°C).
- Probe Level Input
- Conductivity Probe: Max voltage 12 VAC. Sensitivity established from factory at 100KΩ.
- Output
- R1 SPST NO relay resistive load 5 A @ 250 VAC; R2 SPST NC relay resistive load 5 A @ 250 VAC; R3 SPDT relay resistive load 16 A @ 240 VAC.
- Horsepower Rating
- 1HP -- 10FLA; 60LRA 250 VAC.
- Control Type
- On/off.
- Power Requirement
- 115 VAC ± 10%; 230 VAC ± 10%; 24 VAC/DC ± 10%; 12 VAC/DC ± 10%.
- Power Consumption
- 4 VA (230V/115V) 1.5 VA (24V/12V).
- Accuracy
- >1% of FS.
- Display
- 3-digit; red 1/2" digits.
- Resolution
- 1º (3 digits).
- Memory Backup
- Nonvolatile memory.
- Ambient Operating Temperature
- 32 to 158ºF (-30 to 70ºC).
- Storage Temperature
- -4 to 176ºF (-30 to 80ºC).
- Weight
- 3.5 oz.
- Front Protection
- IP64.
- Agency Approvals
- CE; cURus.
