H308 | Current Switch | Micro | Split-Core | Adj | N.O | Veris

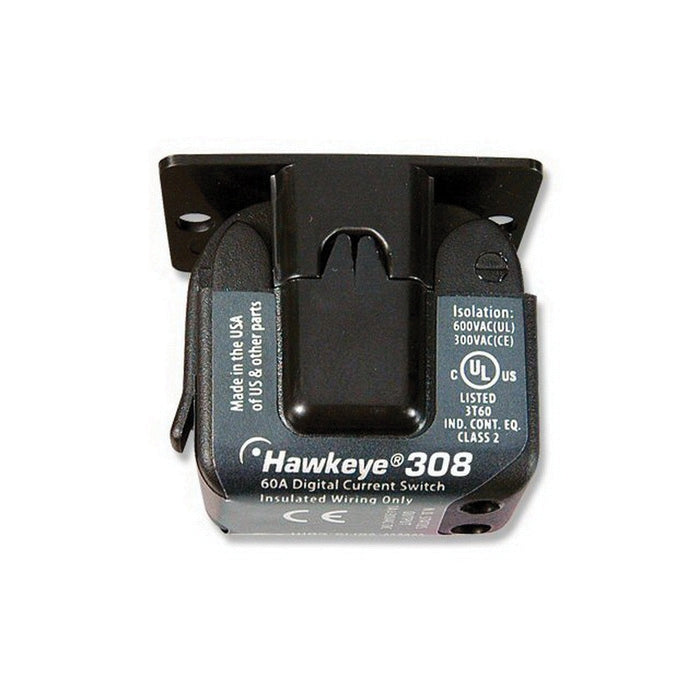

Hawkeye 0.75 to 50 A Adjustable Trip Point Standard Output Current Switch, Split-Core
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to H308
Documents and manuals
Veris H308 Documents
Overview
Details for H308
Current Switch | Micro | Split-Core | Adj | N.O
Description
Hx08 Series and H701 adjustable current switches offer high performance, with a wide array of amperage range options. These products can accurately detect belt loss, coupling shear, or other mechanical failure on unit vents, exhaust fans, recirculation pumps, and other fixed loads down to as little as 1/5 HP.
APPLICATIONS
- Detecting belt loss, coupling shear, and mechanical failure
- Verifying lighting circuit and other electrical service run times
- Monitoring status of industrial process equipment
- Monitoring status of critical motors (compressor, fuel, etc.)
- VFD output On/Off status
Specifications
Item Number | H308 |
Brand | Veris |
Application | Building Automation Systems |
Current Core | Split Core |
Current Measurement Range | 0.75 - 50 A |
Current Sensor type | Current Switch; AC |
Electrical Wiring Size | 24 - 14 AWG (0.2 - 2.1 mm²) |
Measurement Type | AC Current |
Model | H308 |
Monitored Frequency Range | 50 - 60 Hz |
Monitored Wire Size | 0.3" (8 mm) |
Mounting | Split Core |
Operating Humidity | 10 - 90% RH; non-condensing |
Operating Temperature | 5 - 140 °F (-15 - 60 °C) |
Output Specifications | N.O. 1 A @ 30 VAC/DC |
Outputs | Switch output |
Product Certification | UL | CE |
Product Type | Sensor |
Range | HX08 Series |
Relay Coil Voltage | None |
Relay Contact Ratings | None |
Relay Poles/Throw | None |
Sensor | Current Switch (Hawkeye) |
Setpoint | Adjustable |
Warranty | 5 years |
