TS-13020 | Digital temperature switch | 230 V | 16 A | °F display. | Dwyer

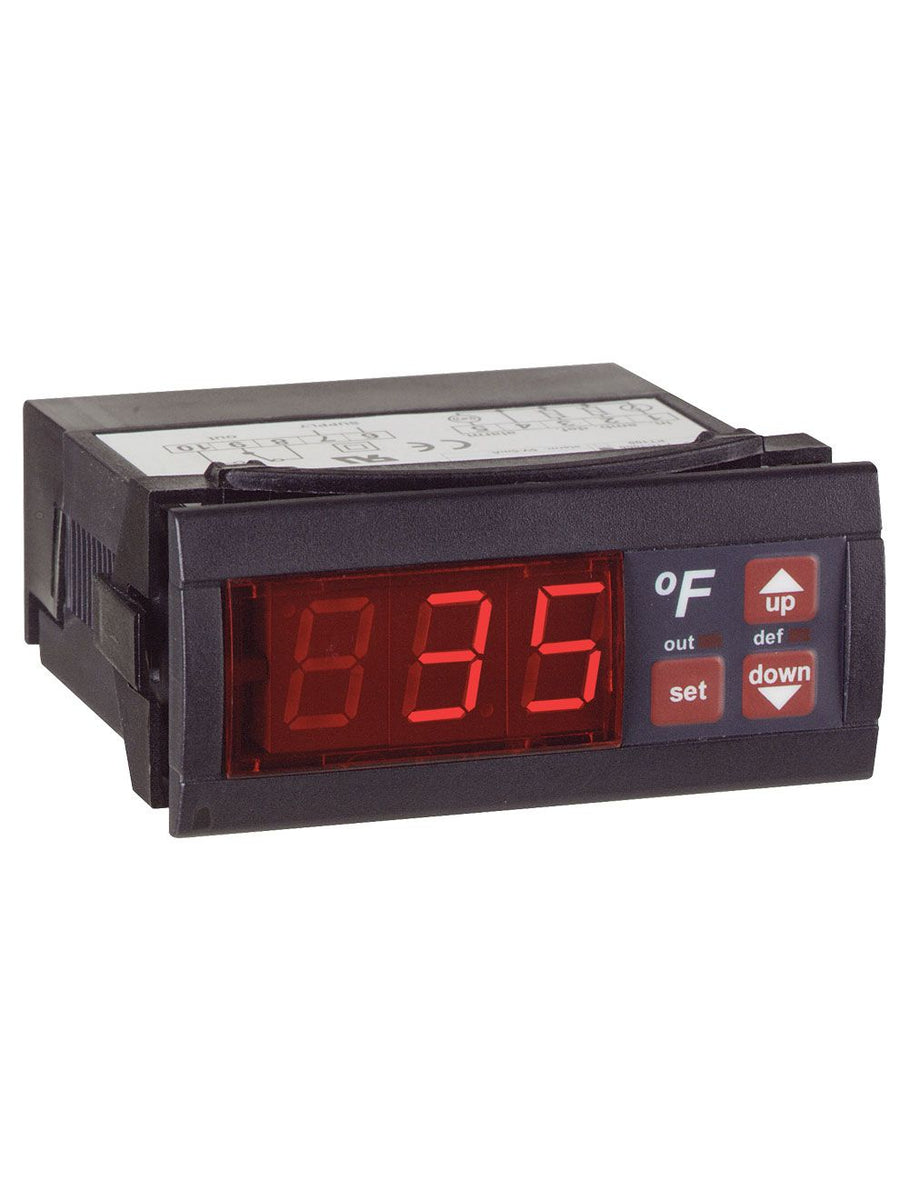

Digital temperature switch, 230 V, 16 A, °F display.

Dwyer | TS-13020
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TS-13020

Documents and manuals

Dwyer TS-13020 Documents

Overview

Details for TS-13020

See catalog product page for full listing

Digital temperature switch | 230 V | 16 A | °F display.

SERIES TS DIGITAL TEMPERATURE SWITCH

3-Digit Display, Heating/Cooling Control, 8 or 16 Amp Relay

The Series TS Digital Temperature Switch is designed to regulate many heating and cooling applications. Easy programming via the tactile front keypad enables quick setup of the 12 parameters for simple, reliable operation. The user can define set point, heating/cooling regulation, hysteresis, cycle time, ambient probe adjustment and defrosting time. The unit features error or alarm messaging and password protection. View probe temperature on the bright red, 3-digit LED display. Select between temperature display in °F or °C, and 110 VAC, 230 VAC, or 12 VDC power supplies. The Series TS includes a thermistor with 5 ft (1.5 m) cable, fitting clips for panel mounting, gasket, rear terminal cover, and instruction manual.

Product Applications

  • Industrial chillers
  • Environmental chambers
  • Walk-ins and freezers
  • Heat sealers
  • Sterilizers
  • Beer and wine chillers
  • Mug frosters
  • Coolers
  • Display cases and cabinets
  • Warmers
  • Meat and produce storage
  • Floral preservation
  • Refrigerated transportation
  • Laboratories
  • Food service equipment
  • Ovens and dryers
  • Tobacco preservation
  • Hot melt glue stichers for case erectors
  • Cool rooms
  • Burn-in rooms and chambers
  • Cold water citrus packing

Specifications

Series
TS DIGITAL TEMPERATURE SWITCH
Category/Type
Temperature
Type
Switches
Series
TS DIGITAL TEMPERATURE SWITCH
Probe Range
-58 to 302°F (-50 to 150°C).
Input
1.5-inch (4 cm) thermistor (1000Ω @ 25°C) with 5 ft (1.5 m) cable.
Output
16A SPDT relay @ 250 VAC resistive.
Horsepower Rating (HP)
1 HP for 16A.
Control Type
ON/OFF.
Power Requirements
110 VAC; 230 VAC or 12 VAC/VDC (depending on model). 4VA (230V).
Accuracy
±1°C.
Display
3-digit; red; 1/2" digits.
Resolution
1°.
Memory Backup
Nonvolatile memory.
Temperature Limits
Ambient: 32 to 158°F (0 to 70°C).
Storage Temperature
-4 to 176°F (-20 to 80°C).
Weight
2.3 oz (65 g).
Front Panel Rating
IP64.
Agency Approvals
CE; ULc; UL.
