LCT316-100 | Low cost digital timer | 115 VAC supply voltage. | Dwyer

Low cost digital timer, 115 VAC supply voltage.

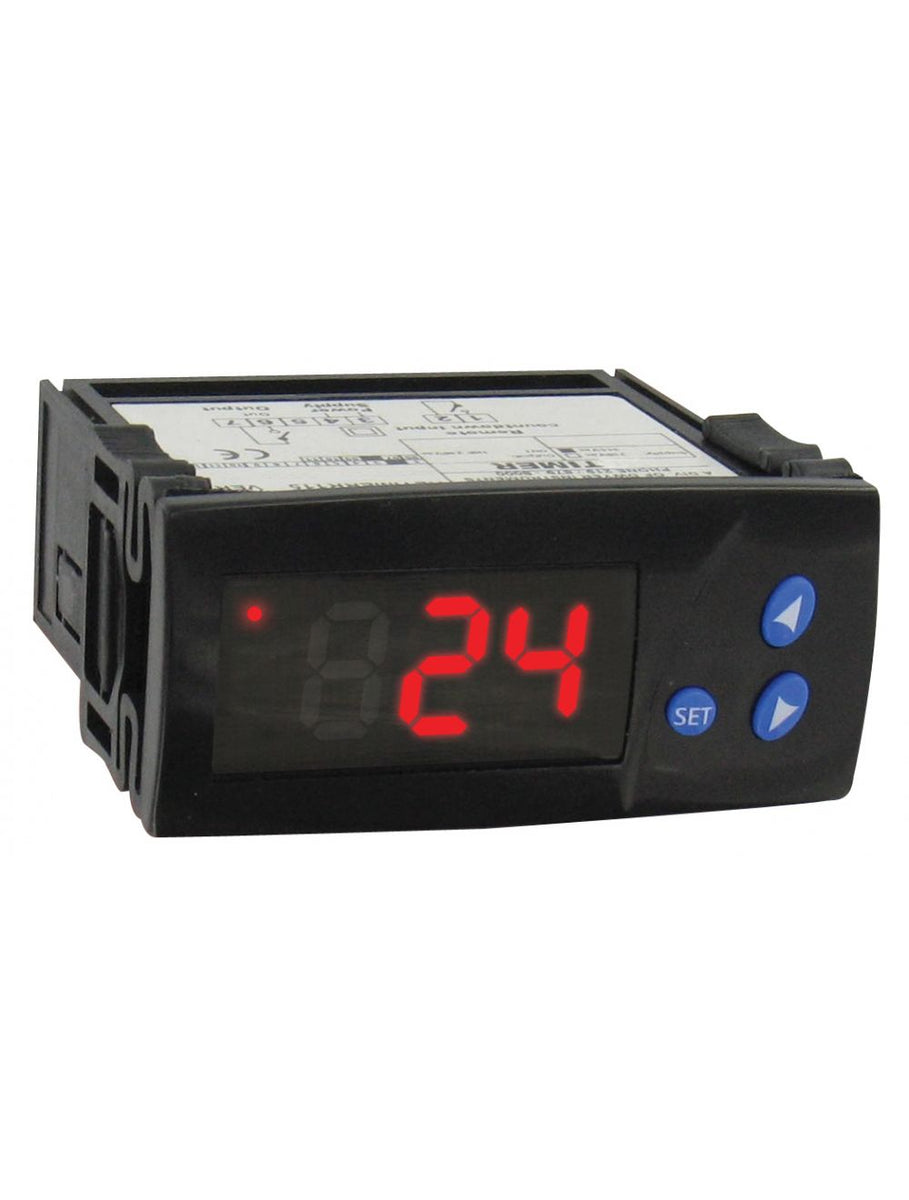

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LCT316-100

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer LCT316-100 Documents

Instruction Manual Series LCT316 Catalog Page More Info

Overview

Details for LCT316-100

See catalog product page for full listing

Low cost digital timer | 115 VAC supply voltage.

SERIES LCT316 LOW COST DIGITAL TIMER

Quick Installation, Digital Input, Audible Alarm

The Series LCT316 Low Cost Digital Timer provides accurate countdown timing for a variety of applications. The timer can be triggered remotely using the digital input terminals or locally via the set button. Time intervals can be set up to 999 minutes or seconds. The Series LCT316 has an internal buzzer to alert when the time interval has expired.

Product Applications

Commercial cooking equipment
Commercial dish washers and refrigeration equipment

1 second to 999 minute field set time interval
Audible alarm for status indication

Specifications

Series: LCT316 LOW COST DIGITAL TIMER
Category/Type: Process Control
Type: Timers
Series: LCT316 LOW COST DIGITAL TIMER
Operating Temperature Range: 32 to 158°F (0 to 70°C).
Control Output Ratings: Relay; SPST; 16A at 250 VAC resistive.
Status Light: LED shows time and operation.
Inputs: Digital input for start and reset.
Supply Voltage: 115 VAC; 230 VAC; 12 VAC/DC; 24 VAC/DC depending on the model.
Power Consumption: 4VA.
Weight: 5.6 oz (158.8 g).
Agency Approvals: CE; cURus.
