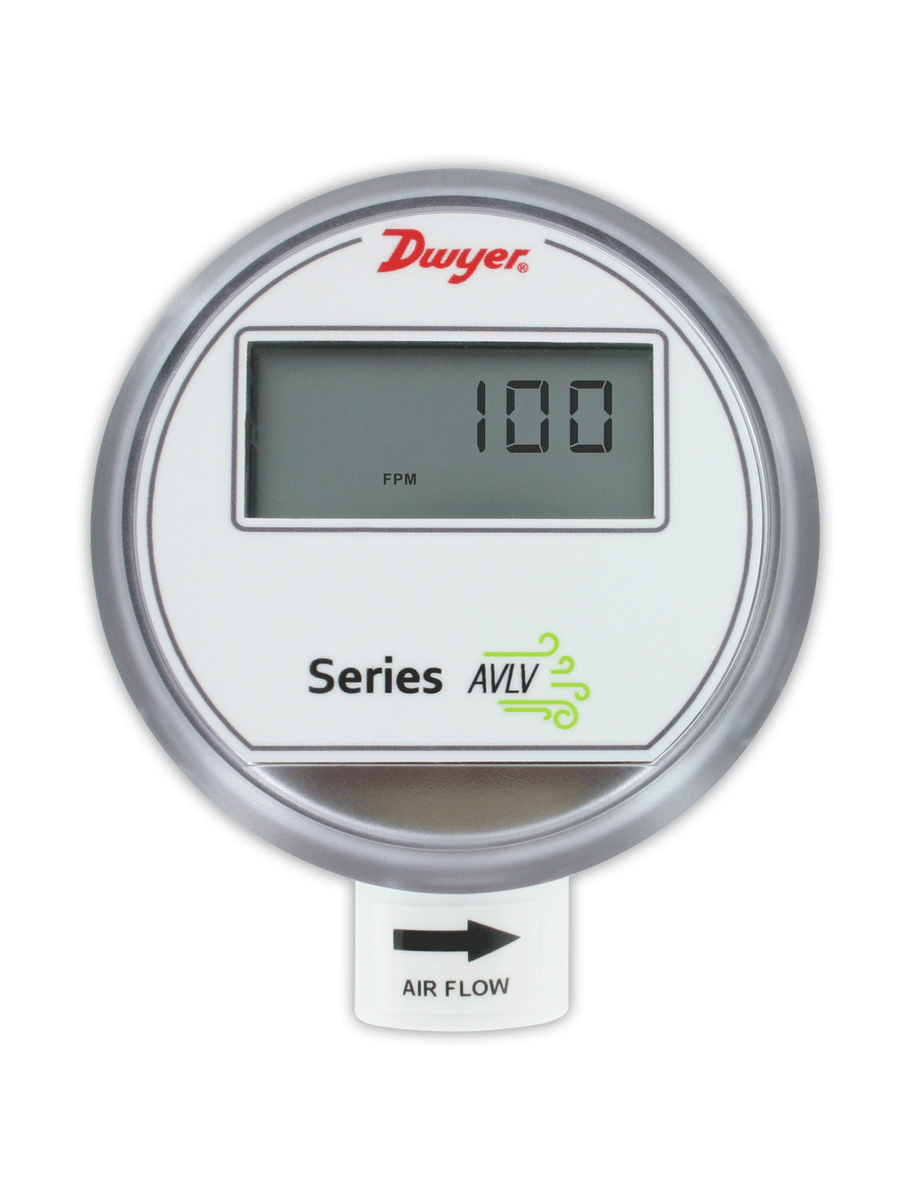

AVLV-2DB1-LCD | Air velocity transmitter | 2% accuracy | duct mount | BACnet communication with LCD display | Dwyer

Air velocity transmitter, 2% accuracy, duct mount, BACnet communication with LCD display

Brand: DwyerSKU: AVLV-2DB1-LCD

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to AVLV-2DB1-LCD

Jump to: Overview & Specifications Reviews

Overview Details for AVLV-2DB1-LCD

See catalog product page for full listing

Air velocity transmitter | 2% accuracy | duct mount | BACnet communication with LCD display

SERIES AVLV AIR VELOCITY TRANSMITTER

1% and 2% Models, Optional BACnet MS/TP or Modbus®

The Series AVLV Air Velocity Transmitter quickly and accurately measures airvelocity or volumetric flow in imperial or metric units. Simultaneous current andvoltage outputs on all models provide universal inputs to monitoring equipment whilethe output range, units, and 0-5/10 VDC, 4-20 mA output can be configured via localDIP switches. The optional integral display, or the portable remote tool, provide aconvenient way to local monitor process values and configure the unit.

Models are available in 1% and 2% accuracy models and low velocity ranges to suit a variety of needs, and the optional BACnet MS/TP or Modbus® RTU/ASCII communication protocol allows units to be daisy-chained while providing access to all of the velocity and flow data, as well as additional information such as air temperature. The lower ranges in these high accuracy units allow for applications in quality intensive environments, such as the pharmaceutical industry.

Product Applications

VAV systems
Building ducts
Clean room systems

Sensing elements have been coated with an engineered conformal coating to ensure durability and longevity
Field selectable ranges can be quickly configured without power to the unit

Specifications

Series: AVLV AIR VELOCITY TRANSMITTER
Service: Clean air and non-combustible; compatible gases.
Wetted Materials: Consult factory.
Range: 100; 200; 300; 400 FPM (0.5; 1; 1.5; 2 m/s); field selectable.
Accuracy: See chart on catalog page.
Temperature Limits: 32 to 122°F (0 to 50°C).
Power Requirements: 24 VDC ±20% or 24 VAC ±20%.
Humidity Limits: 5 to 95% RH; non-condensing.
Output Signals: 4 to 20 mA; 0 to 5 VDC; 0 to 10 VDC.
Response Time (90%): 4 s; typical; 1 s at constant temperature.
Zero & Span Adjustments: Digital push buttons.
Output Load Resistance: Current output: 0 to 1100 Ω max.; Voltage output:Minimum load resistance 1 kΩ.
Current Consumption: 60 mA max.
Display: 5 digit LCD (optional).
Electrical Connections: Analog: Power and output: four wire removable Europeanstyle terminal block for 16 to 26 AWG; Communication: Connections: BACnet MS/TP or Modbus® RTU/ASCII: three wire removable European style terminal block for16 to 26 AWG.
Supported Communication Baud Rates: 9600; 19200; 38400; 57600; 76800; 115200 (optional).
Device Load: 1/8 unit load.
Electrical Entry: 1/2" NPS thread; Accessory: Cable gland for 5 to 10 mm diameter cable; A-151.
Enclosure Rating: NEMA 4X (IP66).
Mounting Orientation: Flow direction must be parallel to the sensor tip.
Weight: 6.0 oz (160 g).
Agency Approval: BTL; CE.
