HOM215CAFI | Mini circuit breaker, Homeline, 15A, 2 pole, 120 VAC, 10 kA AIR, combo arc fault, pigtail neutral, plug in mount | Square D by Schneider Electric

Brand: Square DSKU: HOM215CAFI

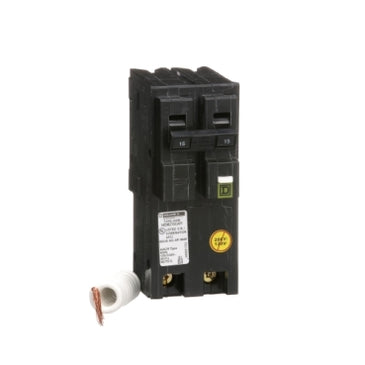

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HOM215CAFI

Jump to: Overview & Specifications Reviews

Overview Details for HOM215CAFI

Mini circuit breaker, Homeline, 15A, 2 pole, 120 VAC, 10 kA AIR, combo arc fault, pigtail neutral, plug in mount

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 15A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. Homeline combination arc fault circuit interrupters provide overload and short circuit protection, plus arc fault protection in accordance with the NEC and UL1699. This breaker has a pigtail neutral. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 15 A
Certifications: UL Listed
Voltage Rating: 120 V AC
Mounting Type: Plug-in
Number of Poles: 2P
Short Circuit Current Rating: 10 kA
Number of Spaces: 2
Circuit Breaker Type: Combination ARC-fault
Ratings: HACR rated
Electrical Connection: Clamp terminal for 2 cables
Wire Size: AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 10 copper)2
Connections - Terminals: Pigtail neutral
tightening torque: 35.40 lbf.in (4.0 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);35.40 lbf.in (4.0 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
Height: 3.13 in (79.50 mm)
Width: 2 in (50.80 mm)
Depth: 2.98 in (75.69 mm)
Ambient air temperature for operation: 104 °F (40 °C)
Category: 06301-HOM SINGLE POLE ARC FAULT CIRCUIT BREAKER
Discount Schedule: DE3D
GTIN: 00785901392682
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.50 in (8.89 cm)
Package 1 Width: 2.30 in (5.842 cm)
Package 1 Length: 5.90 in (14.986 cm)
Package 1 Weight: 18.08 oz (512.559 g)
Warranty: Lifetime
