32B-33-LV | 1/32 DIN temperature/process controller | relay outputs 1 and 2 | low voltage | Dwyer

1/32 DIN temperature/process controller, relay outputs 1 and 2, low voltage

Brand: DwyerSKU: 32B-33-LV

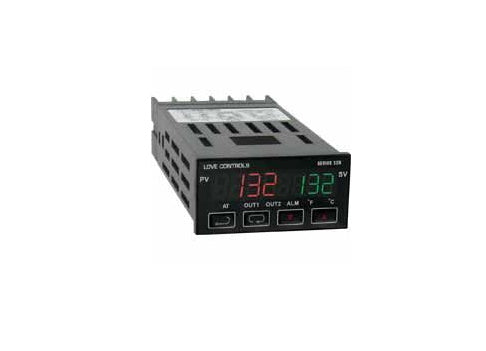

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 32B-33-LV

Jump to: Overview & Specifications Reviews

Overview Details for 32B-33-LV

See catalog product page for full listing

1/32 DIN temperature/process controller | relay outputs 1 and 2 | low voltage

Series 32B 1/32 DIN Temperature/Process Controller

Universal Input, Dual Temperature Output Control, RS-485 Communication

The compact Series 32B Temperature/Process Controller offers advanced control features for the most demanding temperature or process applications. Enclosed in a 1/32 DIN housing, the Series 32B is designed with dual, 4-digit LED displays for local indication of process value and setpoint. Control methods include ON/OFF, PID, self-tune, and manual tune. PID control is supported with 4 temperature and time (ramp/soak) control actions. The dual loop output control allows simultaneous heating and cooling control. The second output can be configured as an alarm mode using one of the thirteen built-in alarm functions.

RS-485 communications is standard on the Series 32B. Up to 247 communication addresses are available with transmission speeds of 2400 to 38,400 bps. The controller also features universal input, selectable temperature units (°F/°C), selectable resolution, quick sampling rate and security protection.

Product Applications

Oven, boiler, or chiller control
Hot plates/melt pots
Packaging equipment
Environmental chambers
Medical equipment
Food service equipment

Universal input accepts process transmitters, RTD’s or thermocouple signals
On/off, PID, or manual output control
RS-485 standard on all models
Stage control program for up to 64 ramp/soak actions

Specifications

Series: 32B 1/32 DIN Temperature/Process Controller
Category/Type: Process Control
Type: Process Controllers
Series: 32B 1/32 DIN Temperature/Process Controller
Inputs: Thermocouple; RTD; DC voltages or DC current.
Display: Two 4-digit; 7 segment .25" H (6.35 mm) LED's. PV: red; SV: green.
Accuracy: ±0.25% span; ±1 least significant digit.
Supply Voltage: 100 to 240 VAC; 50/60 Hz.
Power Consumption: 5 VA max.
Operating Temperature: 32 to 122°F (0 to 50°C).
Memory Backup: Nonvolatile memory.
Control Output Ratings: Relay: SPST; 3A @ 250 VAC resistive; Voltage Pulse: 14 V; 10% to -20% (max 40 mA); Current: 4 to 20 mA.
Communication: RS-485 Modbus® A-5-11/RTU communication protocol.
Weight: 4 oz (114 g).
Agency Approvals: CE; RoHS; cUL; UL.
Front Panel Rating: IP56.
