TSF-4041 | Thermocouple limit control | type J/K/S input | 24 VAC/VDC | °C. | Dwyer

Thermocouple limit control, type J/K/S input, 24 VAC/VDC, °C.

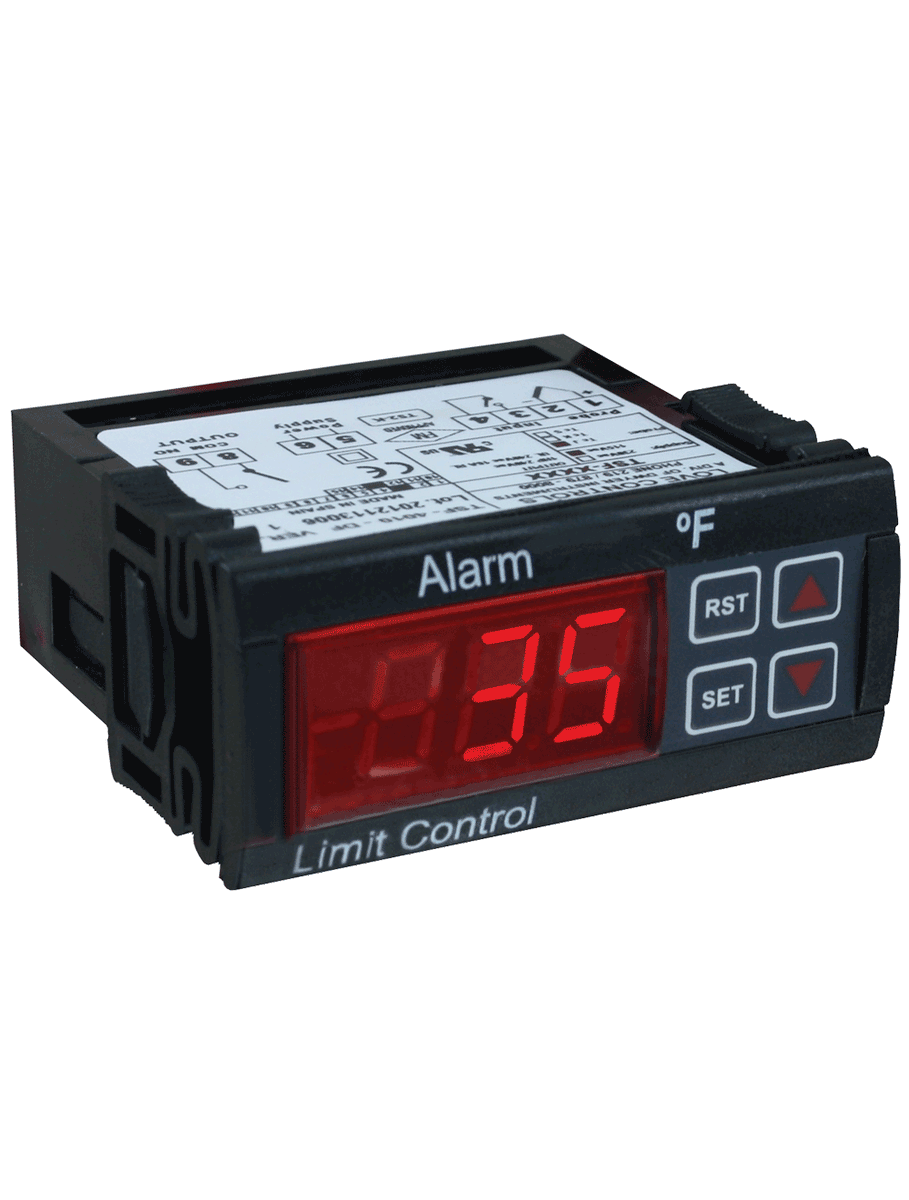

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSF-4041

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer TSF-4041 Documents

Instruction Manual Series TSF Catalog Page More Info

Overview

Details for TSF-4041

See catalog product page for full listing

Thermocouple limit control | type J/K/S input | 24 VAC/VDC | °C.

SERIES TSF THERMOCOUPLE LIMIT CONTROL

FM Approved Temperature Limit Control

The Series TSF Thermocouple Limit Control provides audible alarm status along with a relay output. Unit allows the user to easily select automatic or manual reset via a built in reset button on the front panel or an external contact.

Product Applications

Gas fired oven and burner control

FM approved temperature limiting control
Integral and remote reset capabilities

Specifications

Series: TSF THERMOCOUPLE LIMIT CONTROL
Category/Type: Temperature
Type: Switches
Series: TSF THERMOCOUPLE LIMIT CONTROL
Probe Range: 32 to 999°F (0 to 700°C) for Type J thermocouple; 32 to 999°F (0 to 999°C) for type K or S thermocouples.
Input: Type J; K or S thermocouple.
Output: SPDT relay rated 16 A @ 240 VAC resistive.
Horsepower Rating (HP): 1 HP.
Control Type: ON/OFF; manual/automatic reset.
Power Requirements: 115 VAC; 230 VAC; 12 VAC/VDC or 24 VAC/VDC (depending on model).
Power Consumption: 4 VA.
Accuracy: ±1% FS.
Display: 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: >Ambient: 32 to 150°F (0 to 65°C); Storage: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64 (NEMA 3R).
Agency Approvals: CE; FM; cURus.
