Limit Control Temp | Type J/K Input | 12 VAC/VDC | °F

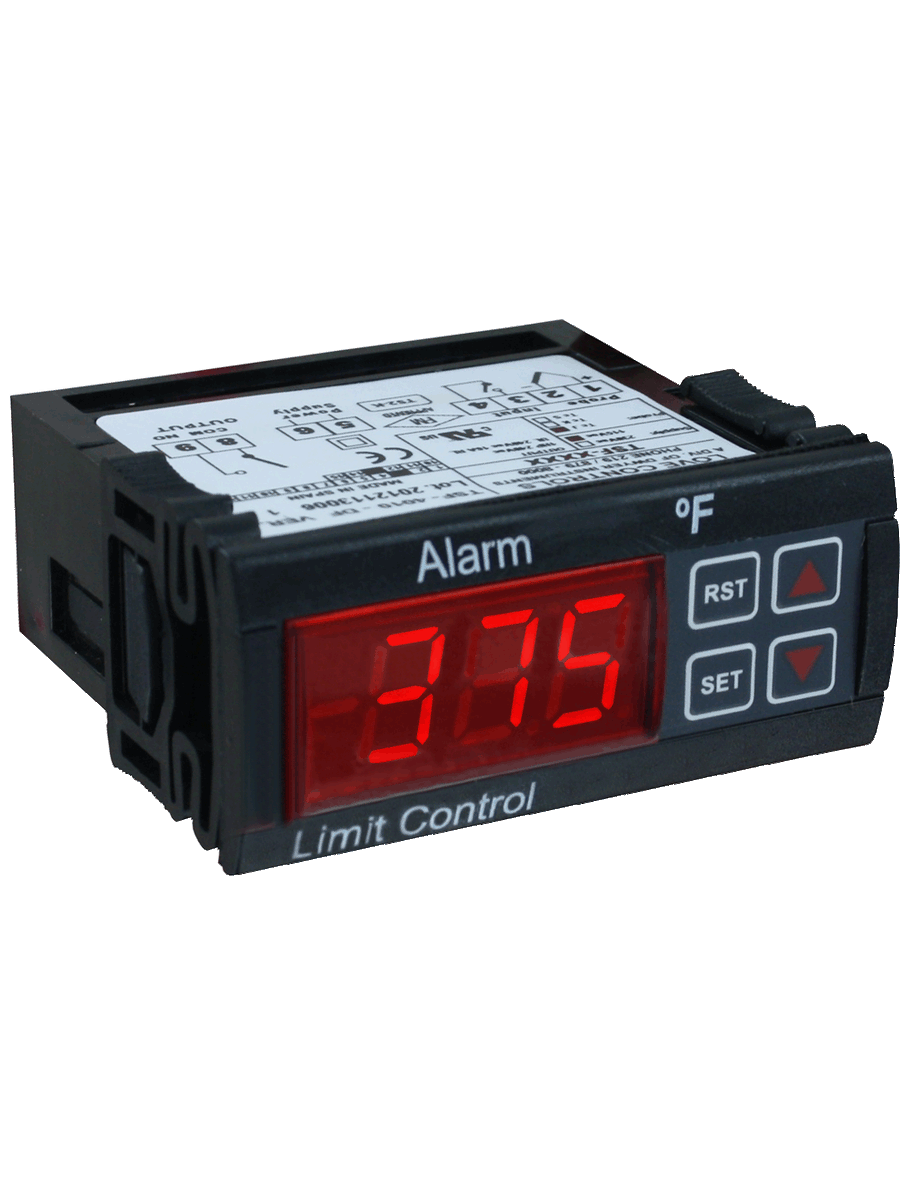

SERIES TSF-DF THERMOCOUPLE LIMIT CONTROL
The Series TSF-DF Thermocouple Limit Alarm is a UL approvedtemperature limit control that provides visual alarm status along with a relayoutput. The Series TSF-DF controls have a built in reset button on the front panel or canaccept an external reset signal.Program settings on model TSF-DF controls cannot be changed through the buttons on thedevice. It is necessary to purchase a model TSF-MDF and a model TS2-K in addition to themodel TSF-DF. Desired program parameters are entered on a TSF-MDF programmingcontrol. Using the TS2-K configuration key, the parameters can be easily copied from theTSF-MDF and transferred to the TSF-DF Limit Alarms.
Product Applications
- Gas fired oven and burner control
- UL approved limit control
Specifications
- Series
- TSF-DF THERMOCOUPLE LIMIT CONTROL
- Category/Type
- Temperature
- Type
- Switches
- Series
- TSF-DF THERMOCOUPLE LIMIT CONTROL
- Probe Range
- 32 to 999°F (0 to 700°C) for thermocouple J type; 32 to 999°F (0 to 999°C) for thermocouple K or S type.
- Input
- Type J; K; or S thermocouple.
- Output
- NO SPST relay rated 16 A @ 240 VAC resistive.
- Horsepower Rating (HP)
- 1 HP.
- Control Type
- ON/OFF; manual/automatic reset.
- Power Requirements
- See model chart.
- Power Consumption
- 4 VA @ 230 VAC.
- Accuracy
- ±1% FS.
- Display
- 3-digit; red; 1/2" (12.7 mm) digits; plus sign.
- Resolution
- 1°.
- Memory Backup
- Nonvolatile memory.
- Ambient Operating Temperature
- 32 to 140°F (0 to 60°C).
- Storage Temperature
- -4 to 176°F (-20 to 80°C).
- Weight
- 2.3 oz (65 g).
- Front Panel Rating
- IP64.
- Agency Approvals
- CE; cURus. (DF models only).
