Current to pressure transducer | 4-20 mA input | 6-30 psig (0.4-2.1 bar) output.

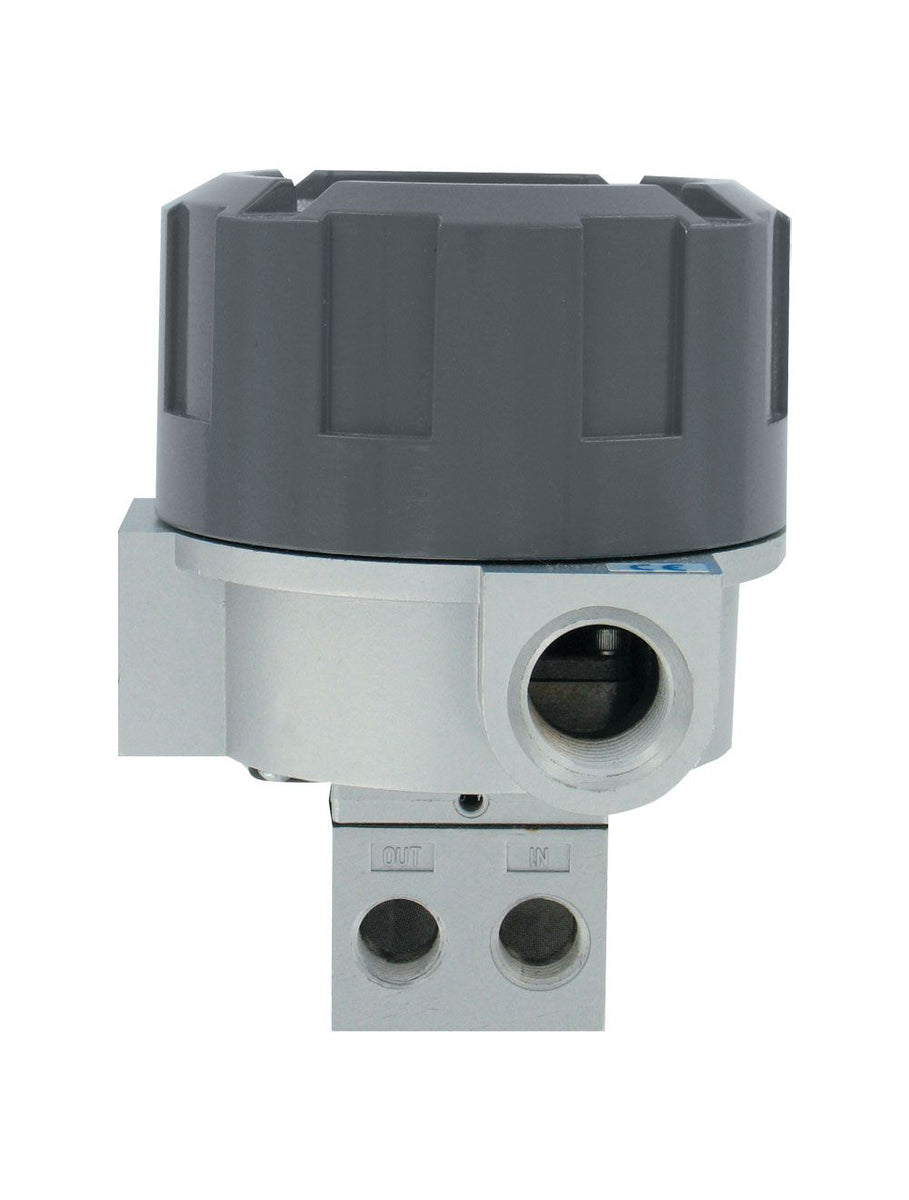

Series 2900 Current to Pressure Transducer
The Series 2900 Current to Pressure Transducer delivers reliable high performance for the toughest applications in the most hazardous environments. Its NEMA 4X housing is designed and FM and CSA approved for both intrinsically safe and explosion-proof operation. This unit has advanced circuitry which includes electronic feedback control for superior vibration protection and highly accurate output. The 2900 is not position sensitive and the easily accessible zero and span adjustment make field calibration quick and easy. For ease of installation, this model has input and output ports on both the front and back. It is also not vibration sensitive, which makes the 2900 ideal for field mounting on a valve. These features coupled with the unit's compact size help make set-up and installation simple.
Product Applications
- Controlling valve actuators, pneumatic valve positioners, air cylinders, clutches, brakes, dampers, louvers and pumps
- Designed for Hazardous Environments
- Vibration Resistant
- Explosion-proof
- Weatherproof and Intrinsically Safe
Specifications
- Series
- 2900 Current to Pressure Transducer
- Category/Type
- Valves
- Type
- Current to Pressure Transducers
- Series
- 2900 Current to Pressure Transducer
- Service
- Oil free; clean dry air filtered to 40 microns.
- Input Signal
- 4-20 mA.
- Air Supply
- Minimum: 5 psig (0.3 bar) above maximum output; Maximum: 100 psig (6.9 bar).
- Output
- 3 to 15 psig (0.2 to 1.0 bar); 6 to 30 psig (0.4 to 2.1 bar).
- Accuracy
- ±0.1% of span.
- Hysteresis
- ±0.1% of span.
- Repeatability
- ±0.1% of span.
- Deadband
- 0.02% of span.
- Power Requirement
- Loop powered.
- Temperature Limits
- Operating: -40 to 160°F (-40 to 71°C); Storage: -40 to 200°F (-40 to 93°C).
- Pressure Connections
- 1/4" female NPT.
- Electrical Connection
- 1/2" female NPT.
- Air Consumption
- 0.05 scfm (0.02 l/s) at midrange typical.
- Output Capacity
- 4.5 scfm (2.1 l/s) at 25 psig (1.7 bar) supply; 12.0 scfm (5.7 l/s) at 100 psig (6.9 bar) supply.
- Enclosure
- Chromate-treated aluminum with epoxy paint.
- Enclosure Rating
- Weatherproof NEMA 4X (IP65); explosion-proof and intrinsically safe.
- Weight
- 1.8 lb (0.82 kg).
- Agency Approvals
- CE; CSA; FM.
- FM Ratings
- Explosion-proof for Class I; Division 1; Groups B; C and D. T6; Dust Ignition-proof for Class I; Division 1; Groups E; F and G; T6; Intrinsically safe for Class I; II and III; Division 1; Groups C; D; E; F and G; T4 hazardous (classified) locations and intrinsically safe for Class I; Zone 0; Group IIB; T4 hazardous (classified) locations and suitable for Class I; Groups A; B; C; D; T4 and Class II and III; Division 2; Groups F and G; T6 hazardous (classified) locations.
- CSA Ratings
- Class I; Division 1; Groups B; C and D; Class I; Division 2; Groups A; B; C and D; Class II; Division 1; Groups E; F and G; Class II and III; Division 2; Groups F and G.
