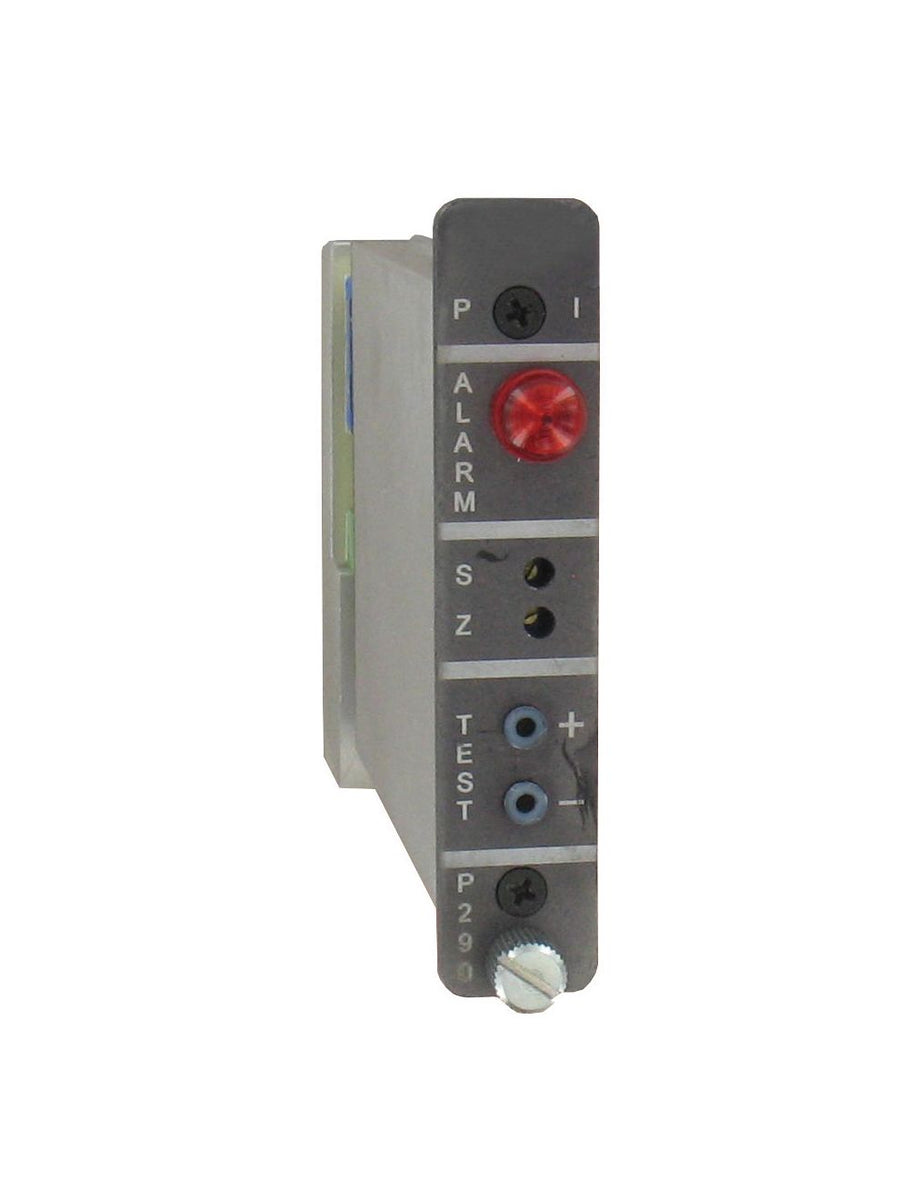

MODEL PI PRESSURE TO CURRENT TRANSDUCER

Reliable, User-Oriented Performance

The Model PI Pressure To Current Transducer converts a pneumaticinput pressure to an accurately proportional output current withuncompromising accuracy and durability. The PI serves in high-density andpanel-mounted applications. The rugged PI transducer offers a high densityDIN rail adapters and space saving with easy plug-in installation.

Specifications

Service: Clean dry air filtered to 40 microns.
Input Signal: 3 to 15 psig and 3 to 27 psig.
Input Capacitance: 2-wire: 700 ƒ; standard; Voltage: 5k ƒ min.
Output: 2-wire: 4 to 20 mA.
Linearity: ±0.15% of span.
Hysteresis: ±0.15% of span max.
Accuracy: ±0.15% of span guaranteed; ±0.10% of span typical.Includes combined effects of linearity; hysteresis and repeatabilityerrors.
Repeatability: ±0.10% of span; ±0.03% of span typical.
Response Time: 10 m sec to 99% of step change.
Power Requirements: 10 to 42 VDC.
Temperature Stability: Span and Zero: ±0.007% of span per °F max.deviation from 77°F calibration.
Temperature Limits: Operating: -40 to 167°F (-40 to 75°C);Storage: -60 to 185°F (-50 to 85°C).
Calibration Adjustments: Non-interactive; multi-turn span and zeropotentiometers with approximately ±10% of span adjustment range.
Connections: Signal Air: 1/8" NPT female; Electrical Wiring: Miniature terminal block accepts solid or strandedwire up to 14 AWG.
Weight: 0.5 lb (0.2 kg).
