IP-42 | Current to pressure transducer | 4-20 mA input | 3-15 psi (20-100 kPa) output. | Dwyer

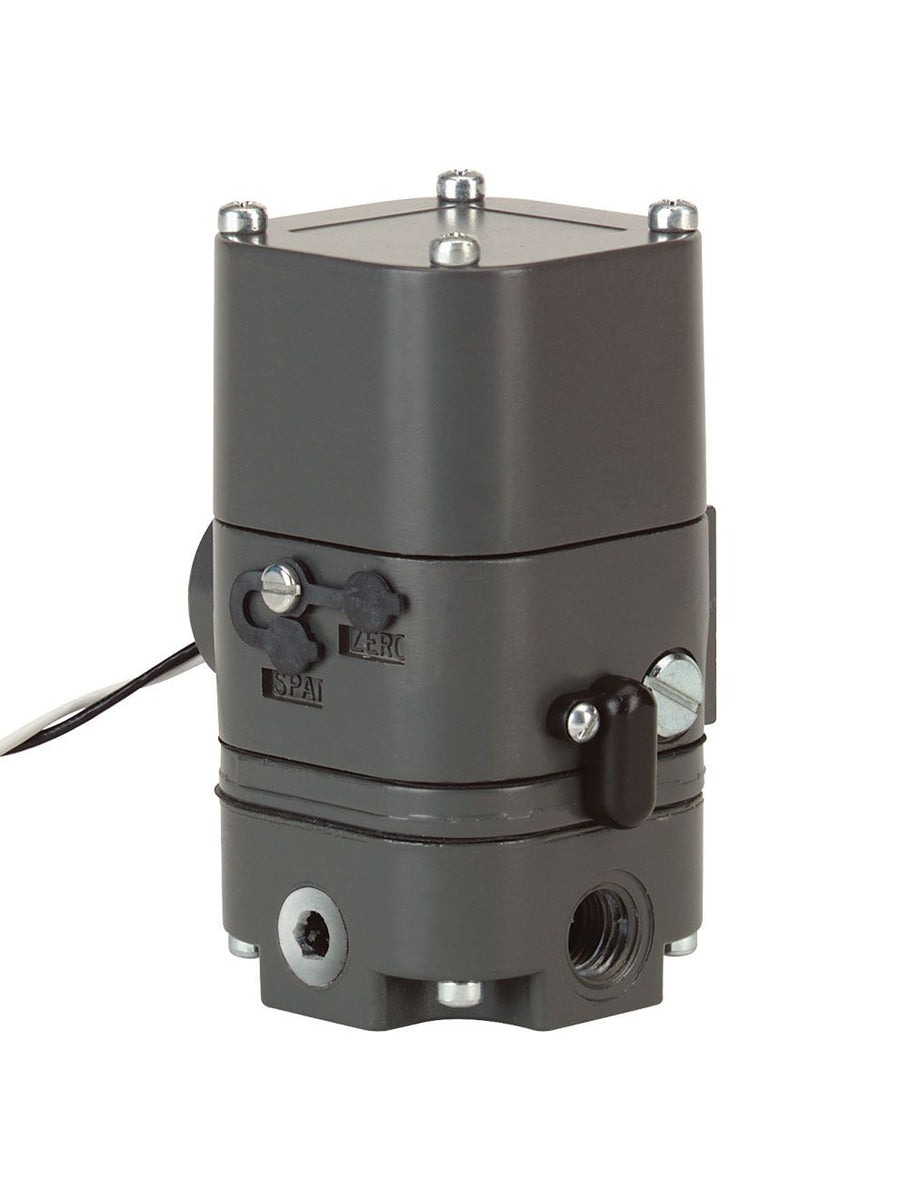

Current to pressure transducer, 4-20 mA input, 3-15 psi (20-100 kPa) output.

Brand: DwyerSKU: IP-42

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to IP-42

Jump to: Overview & Specifications Reviews

Overview Details for IP-42

See catalog product page for full listing

Current to pressure transducer | 4-20 mA input | 3-15 psi (20-100 kPa) output.

Series IP Current to Pressure Transducers

Intrinsically Safe, NEMA 4X Enclosure, Field Reversible, Low Cost

The Series IP Current to Pressure Transducers converts a current input signal to a linearly proportional pneumatic output pressure. The features include built-in volume booster, low air consumption, field reversible (provides output which is inversely proportional to the input signal) and flexible zero and span adjustments. The rugged NEMA 4X enclosure allows splashdown and outdoor installation. The IP can be used for applications that require operation of valve actuators, pneumatic valve positioners, damper and louver actuators, final control elements, relays, air cylinders, web tensioners, clutches and brakes.

Product Applications

Applications that require the operation of valve actuators, pneumatic valve positioners, damper and louver actuators, final control elements, relays, air cylinders, web tensioners, clutches and brakes

Built-in volume booster
Low air consumption
Flexible zero plus span adjustments
NEMA 4X enclosure
Field reversible

Specifications

Series: IP Current to Pressure Transducers
Category/Type: Valves
Type: Current to Pressure Transducers
Series: IP Current to Pressure Transducers
Service: Oil free; clean dry air filtered to 40 microns.
Input Signal: 4-20 mA.
Input Impedance: IP-42: 180 ohms; IP-43 and IP-44: 220 ohms.
Air Pressure: Minimum: 3 psig (21 kPa) above maximum output; Maximum: 100 psig (700 kPa).
Linearity: <±0.75% of span.
Hysteresis: <1% of span.
Repeatability: <0.5% of span.
Supply Pressure Sensitivity: <±0.1% of span per psig (<±0.15% of span per 10 kPa).
Power Requirements: Loop powered.
Temperature Limits: -20 to 140°F (-30 to 60°C).
Pressure Connections: 1/4" female NPT.
Electrical Connection: 1/2" female NPT.
Air Consumption: 0.03 SCFM (0.5 m³/h) typical.
Output Capacity: 4.5 SCFM (7.6 m³/h ANR) at 25 psig (175 kPa) supply; 12 SCFM (20 m³/h) at 100 psig (700 kPa) supply.
Relief Capacity: 2 SCFM (3.4 m³/h) at 5 psig (35 kPa) above 20 psig (140 kPa) setpoint.
Weight: 2.1 lb (0.94 kg).
Agency Approvals: CE; FM.
