160F-36 | Straight stainless steel pitot tube | 36" | Dwyer

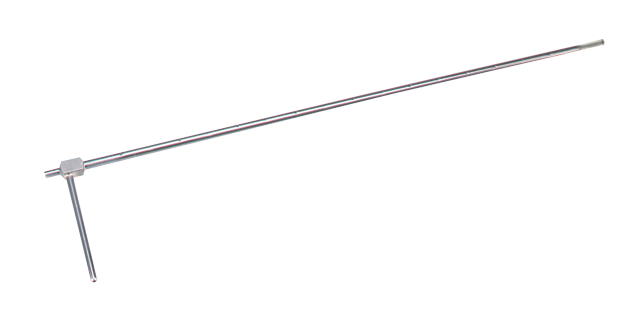

Straight stainless steel pitot tube, 36"

Brand: DwyerSKU: 160F-36

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 160F-36

Jump to: Overview & Specifications Reviews

Overview Details for 160F-36

See catalog product page for full listing

Straight stainless steel pitot tube | 36"

Series 160F Straight Stainless Steel Pitot Tubes

Straight Design, Accurate Positioning

The Series 160F Straight Stainless Steel Pitot Tube is constructed from corrosionresistant stainless steel with permanently etched insertion depth graduations for alifetime of service. The static pressure port is parallel to the sensing tube to allowquick, easy alignment of the tube with air flow. The straight design allows for easyinsertion into ducts through grills and pressure taps, as well as aids in positioning inhard to reach locations where a hook style Pitot tube may not allow access.

Note: Special shipping and handling charges will apply to pitot tube lengths over 36" for International orders and 72" for Domestic orders.

Product Applications

Monitor or control air velocity or air flow when combined with differential pressure gage, switch, or transmitter where hook style Pitot tubes don’t allow access

Straight design allows for easy insertion into ducts
Permanent stamped insertion depth graduations facilitate accurate positioning
Alignment indicator helps keep tip parallel to flow

Specifications

Series: 160F Straight Stainless Steel Pitot Tubes
Category/Type: Air Quality
Type: Pitot Tubes
Series: 160F Straight Stainless Steel Pitot Tubes
Material: 304 SS.
Accuracy: ±2% FS; 0 to 9000 FPM (45 M/s).
K-Factor: 0.81.
Max. Temperature: 1500°F (815°C).
Process Connections: 1/4" OD.
Weight: 4.3 oz (122 g).
Agency Approvals: Meets the technical requirements of EU Directive 2011/65/EU(RoHS II).
