FS-2 | Paddle flow switch | 1" male NPT. | Dwyer

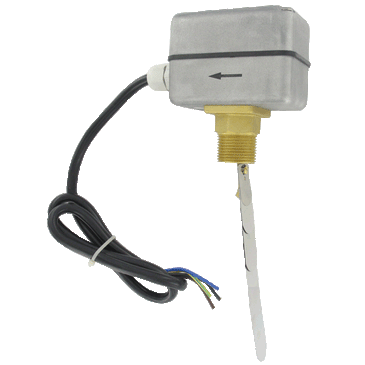

Paddle flow switch, 1" male NPT.

Dwyer | FS-2
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to FS-2

Documents and manuals

Overview

Details for FS-2

See catalog product page for full listing

Paddle flow switch | 1" male NPT.

SERIES FS-2 VANE FLOW SWITCH

Low Cost, Field Adjustable Set Point and Paddle

The Series FS-2 Vane Flow Switches offers an economical flow proving solution. The FS-2 paddles are adjustable to fit 1 to 8" size pipe.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • Boiler flow proving
  • Hot water heaters
  • Chillers
  • Cooling lines
  • Machinery
  • Liquid transfer systems
  • Field adjustable set point adjustment screw allows for easy flow switch modification
  • Custom application set points enabled by field adjustable vane layers
  • Aluminum weatherproof housing permits outdoor installation

Specifications

Series
FS-2 VANE FLOW SWITCH
Service
Compatible liquids.
Wetted Materials
Bellow: Tin-bronze; Vane: SS; Body: Forged brass.
Temperature Limits
230°F (110°C).
Pressure Limits
145 psig (10 bar).
Enclosure Rating
NEMA 4 (IP64).
Switch Type
SPDT snap switch.
Electrical Rating
10 A res; 3 A ind @ 250 VAC.
Electrical Connection
Cable gland with attached wire leads or optional conduit connection.
Process Connection
1" male NPT or BSPT.
Mounting Orientation
Switch must be installed vertically on horizontal pipe runs.
Set Point Adjustment
Four vane combinations and an adjustment screw.
Enclosure
Die-cast aluminum alloy.
Weight
28.22 oz (0.8 kg).
Agency Approvals
CE.
