P2-11 | Flow switch for liquids | actuation set point .05 GPM (.19 LPM). | Dwyer

Flow switch for liquids, actuation set point .05 GPM (.19 LPM).

Brand: DwyerSKU: P2-11

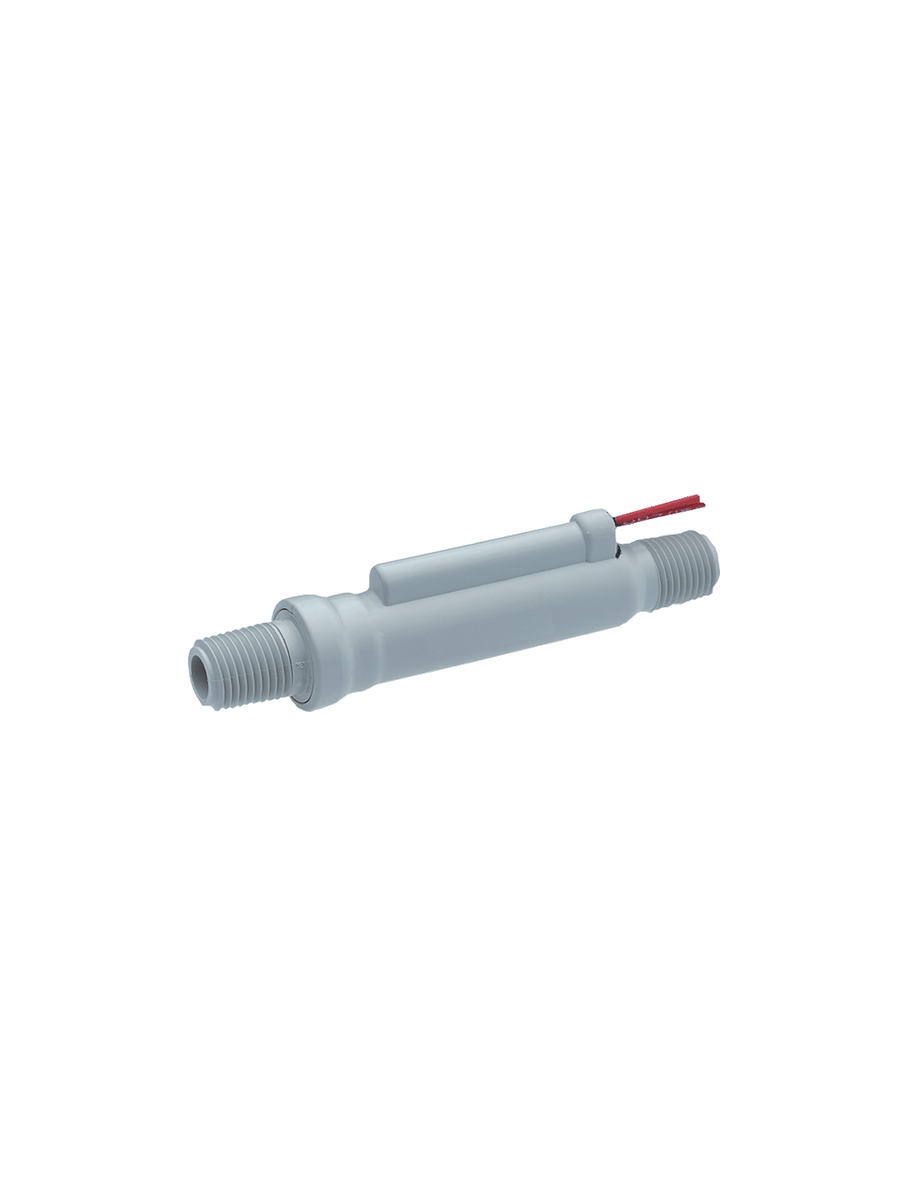

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to P2-11

Jump to: Overview & Specifications Reviews

Overview Details for P2-11

See catalog product page for full listing

Flow switch for liquids | actuation set point .05 GPM (.19 LPM).

Series P2 Flow Switch

Ideal for Air and Post-Filtered Water Applications, Fixed Set Point, FDA Compliant

The compact Series P2 Flow Switch utilizes a piston-type design for both air and pure water applications. The switches have preset actuation points from 0.05 to 1.0 GPM for water and 25 CFH to 5 CFM for air. The piston design incorporates a hermetically sealed SPST magnetic reed switch. The P2 is comprised of PPE & PS (polyphenylene ether and polystyrene) housing and piston and 316 Stainless Steel spring and stop pin. All wetted parts are FDA compliant. Economical and superior design make this an excellent switch for pure water equipment, filter life monitoring, heat exchangers, and cooling applications.

Product Applications

Pure water equipment
Filter life monitoring
Heat exchangers
Cooling applications

Piston design incorporates a hermetically sealed SPST magnetic reed switch
All wetted parts are FDA compliant
Economical design

Specifications

Series: P2 Flow Switch
Category/Type: Flow
Type: Flow Switches
Series: P2 Flow Switch
Service: Compatible liquids or gases.
Wetted Materials: Housing: PPE & PS (polyphenylene ether and polystyrene); Piston: PPE & PS (polyphenylene ether and polystyrene) and epoxy; Spring and Stop Pin: 316 SS.
Temperature Limits: 0 to 212°F (-18 to 100°C).
Pressure Limits: 150 psi (10.3 bar) @ 70°F (21°C); 50 psi (3.4 bar) @ 212°F (100°C).
Switch Type: SPST; N.O.
Electrical Rating: .17 A @ 120 VAC; .08 A @ 240 VAC; .13 A @ 120 VDC; .06 A @ 240 VDC.
Electrical Connection: 22 AWG; 18" (45.7 cm); PVC lead wires.
Process Connection: 1/4" male NPT.
Mounting Orientation: Any position. Set points shown are based on vertical; inlet down position.
Required Filtration: 50 microns or better.
Weight: 2 oz (.06 kg).
Agency Approval: CE.
